10"x2.5" Mains Water Triple Under Sink Filter With 12V LED UV 4LPM
Our water filter systems are proudly assembled in Queensland, using high-quality, approved components. The 12V LED UV Water Steriliser is a highly effective solution for purifying untreated water. With advanced LED UV light technology, it destroys 99.99% of harmful pathogens, ensuring your water is safe for consumption.
NB Note: It is non-compliant to install filters to town mains water supply under constant hydro-static pressure if they do not have Watermark certification and your plumber may refuse to install this unit to mains supply if you select the option without Watermark. If only used on tank water without any connection to town mains water supply it is optional to get Watermark certification.

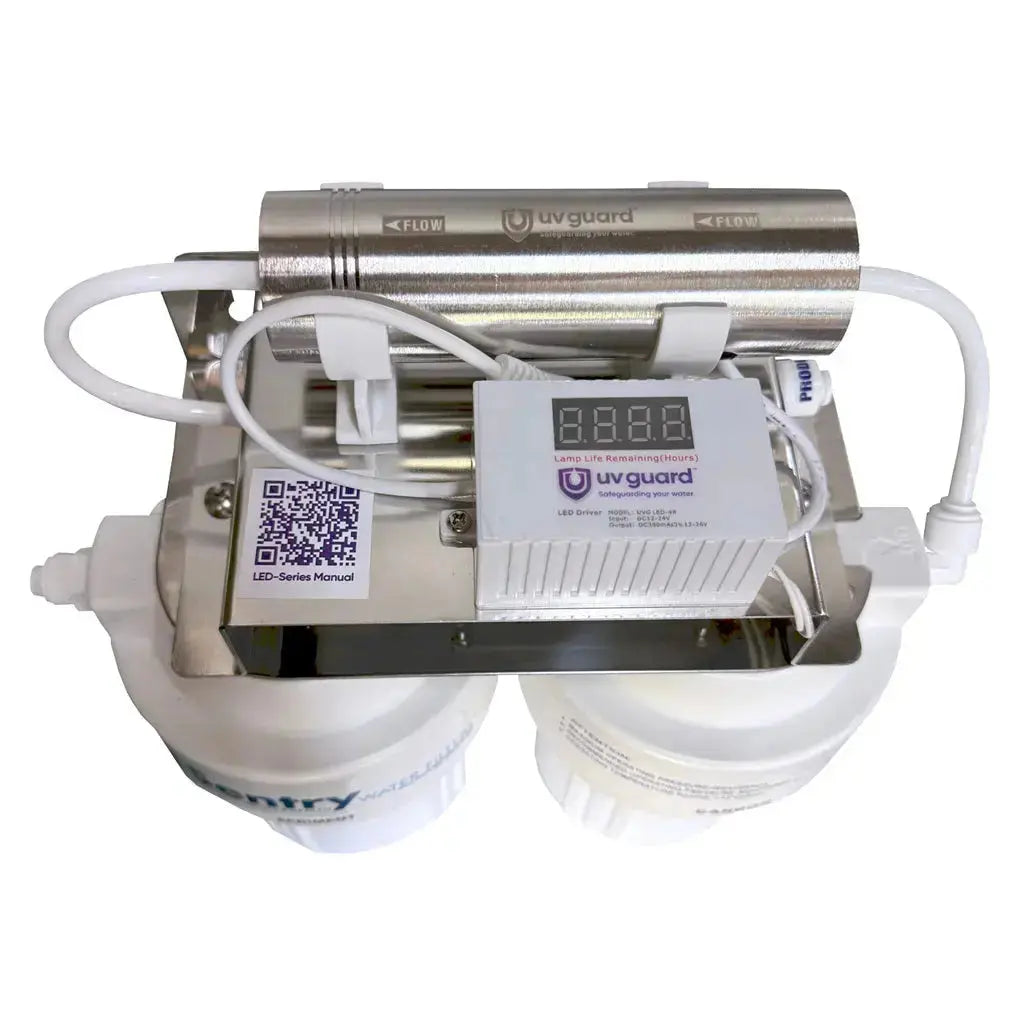

How It Works: The LED-4R UV sterilises water by using powerful LED lights to neutralise harmful microorganisms such as bacteria, viruses, protozoa, and cysts like Cryptosporidium and Giardia.
Key Features:
- Kills 99.99% of Pathogens: Effectively eliminates harmful bacteria, viruses, and cysts, including Cryptosporidium, E. coli, and Giardia.
- Long-Lasting LEDs: LEDs outlast traditional UV bulbs, treating over 1 million litres of water before needing replacement.
- High quality and Easy Installation: This quality design fits under most sinks and easily connects to your tap using ¼” push-fit fittings.
- Energy Efficient: Operates on both 12V DC and 240V AC, making it ideal for off-grid and solar-powered systems.
- Automatic Activation: The built-in flow switch turns the UV light on and off as needed, saving energy.
- Instant Sterilisation: LED lights activate immediately, providing fast water purification.
- Durable & Low Maintenance: Built to last with minimal maintenance required.
- Cool Sterilisation: LEDs produce very little heat, keeping the water cool during sterilisation.
Specifications:
- Max Pressure: 8 Bar
- Operating Water Temperature: 0-45°C
- Flow Rate: 4 litres per minute
- Input Voltage: 12-24V (240V AC adapter included)
- Power Consumption: 8 watts
- Service Life: 5000 hours
- Connection: ¼” push-fit tubing
- UV Transmittance: >90%
- Dimensions: Mounting Bracket Size: 175mm x 100mm; System Height: 85mm (including bracket)
Water Quality Requirements: For best performance, water should meet the following conditions:
- Operating water temperature: 0-45°C
- Hardness: <120 mg/L
- Manganese: <0.05 mg/L
- Iron: <0.3 mg/L
- Turbidity: <1 NTU
- Tannins: <0.1 mg/L
You can download the system manual here: LED-4LPM-Compact-UV-Manual.pdf
Safety Warning: Never operate the UV lamp outside its housing, and never look directly at the UV light without proper eye protection, as it can permanently damage your eyesight.
Warranty: This system comes with a 36-month warranty from the date of purchase. If you're not completely satisfied with your purchase, please contact us so we can address your concerns before leaving any neutral or negative feedback.
Filter Options:
-
Spun Sediment Filter: Removes sediment (rust, dirt, leaves, dust, particles, clay, and debris).
-
0.01 Micron Hollow Fibre Filter: Removes/reduces cryptosporidium, giardia, blastocysts, cysts, and parasitic microorganisms.
-
0.5 Micron Heavy Metals Filter: Reduces heavy metals (including lead by 80-85% on average over the filter's lifespan), chlorine, odour, taste, VOCs, giardia, cryptosporidium, blastocysts, cysts, and other impurities.
-
0.5 Micron Chloramine Filter*: Reduces chloramines, chlorine, fluoride, odour, taste, VOCs, pesticides, herbicides, insecticides, and parasitic micro-organisms and cysts (giardia, cryptosporidium, blastocysts), and other impurities.
-

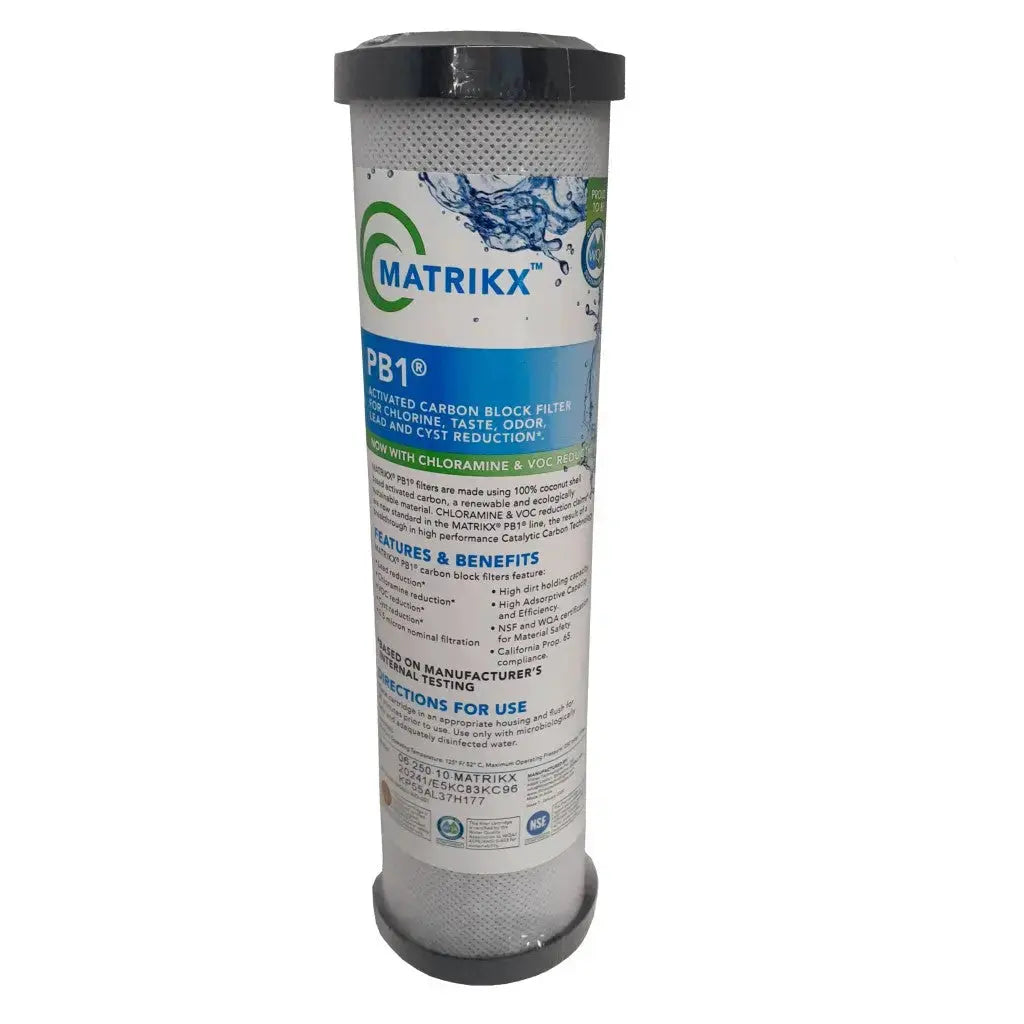

0.5 Micron Matrikx PB1 Carbon Block Filter: Improves taste and odour of water + removes / reduces cryptosporidium, giardia, blastocysts, chloramines, heavy metals, lead, chlorine + volatile organic compounds + a wide range of other impurities that may be in your water
*Fluoride removal is more difficult than that of most other elements. The most efficient filters for fluoride reduction that we provide are the chloramine carbon blocks. Reduces fluoride (by 80% on average over the filter's lifespan), chlorine, odour, taste, VOCs, giardia, cryptosporidium, blastocysts, cysts, and other impurities.

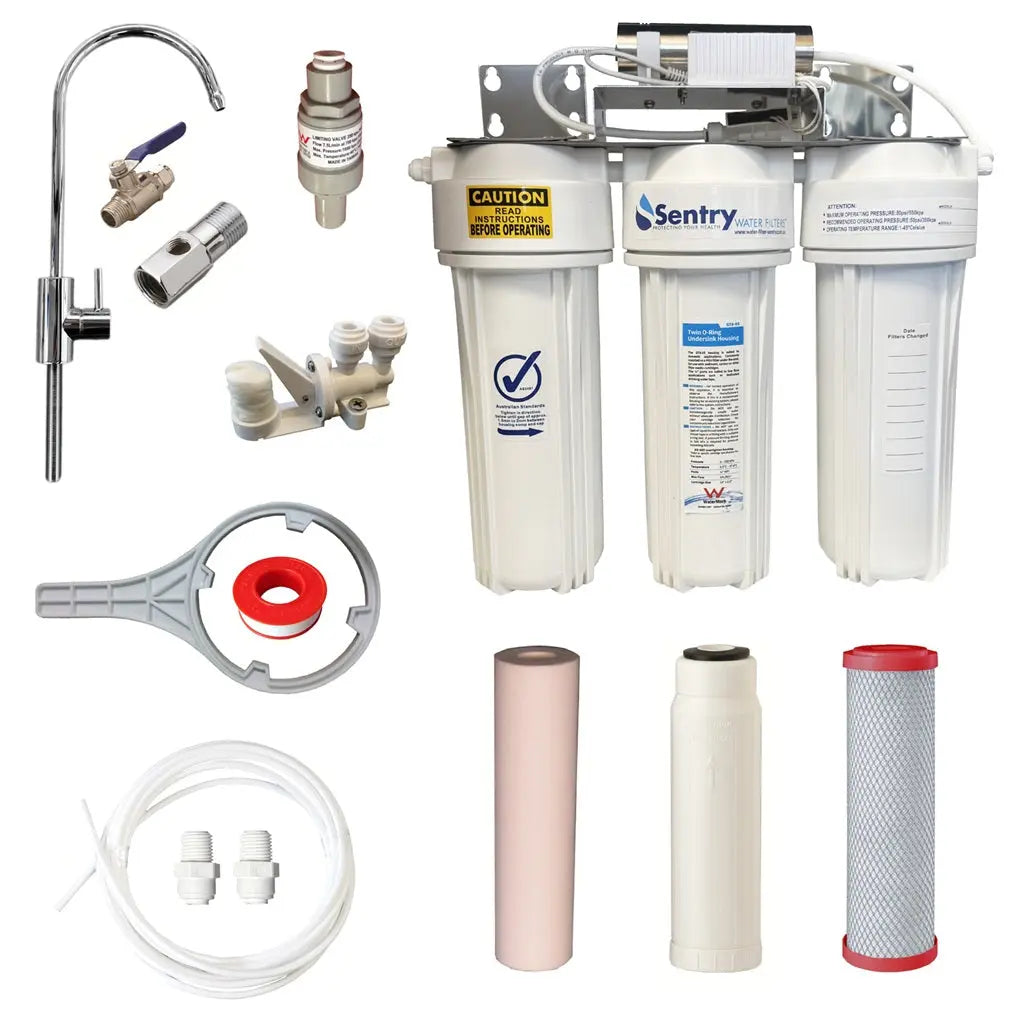

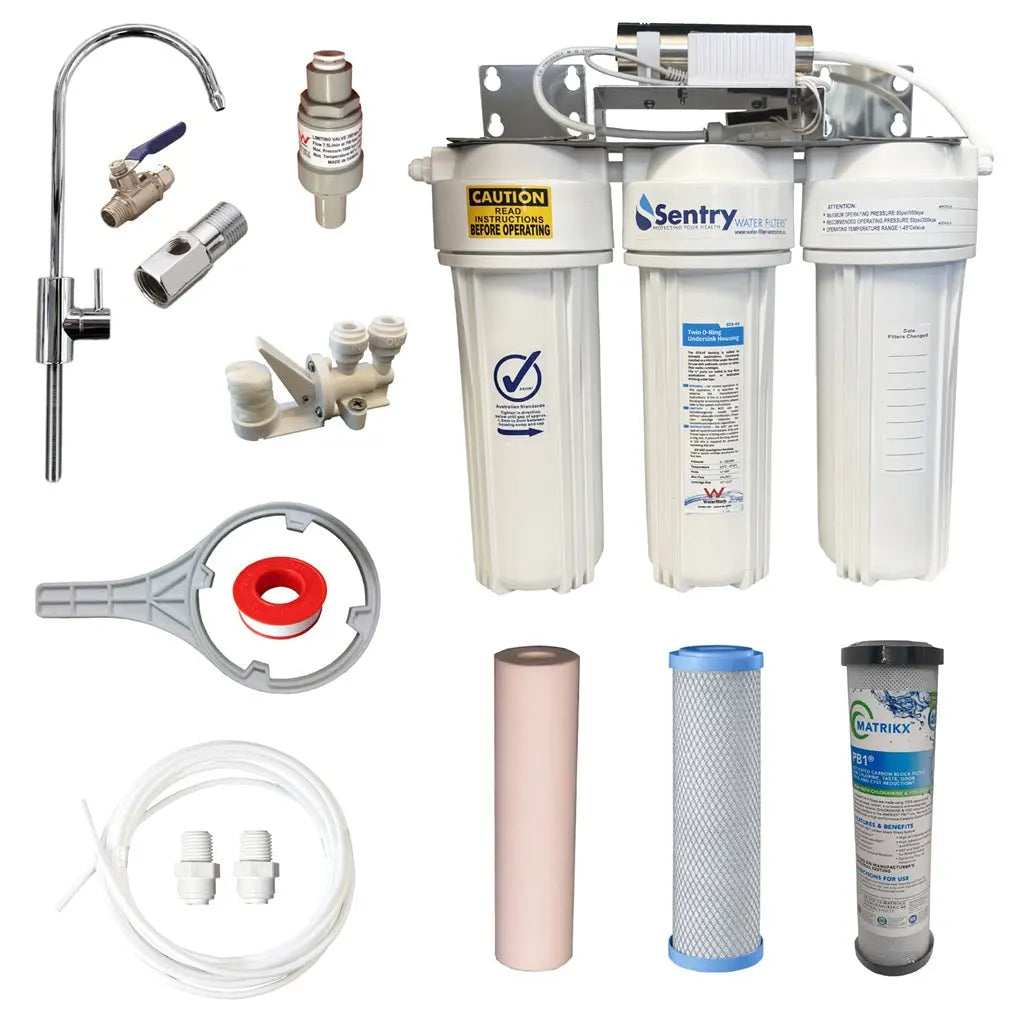

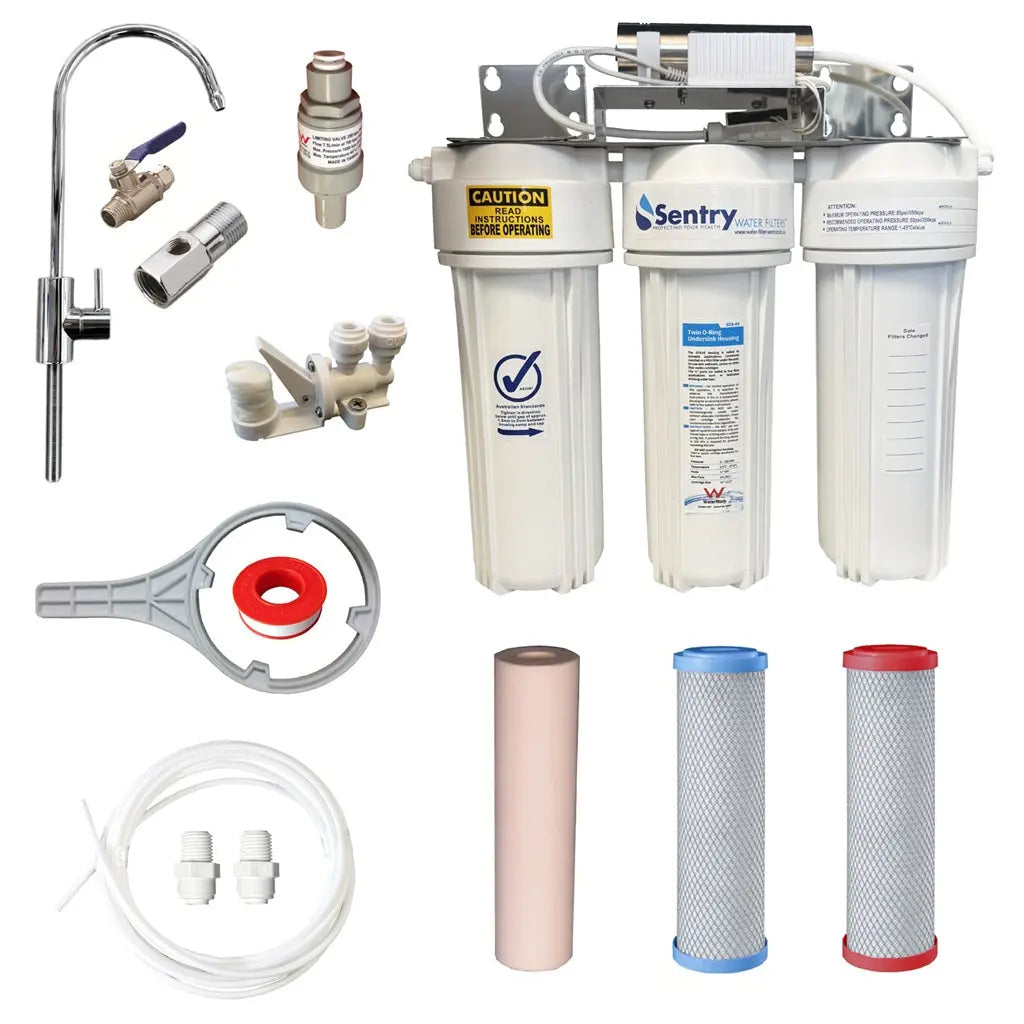

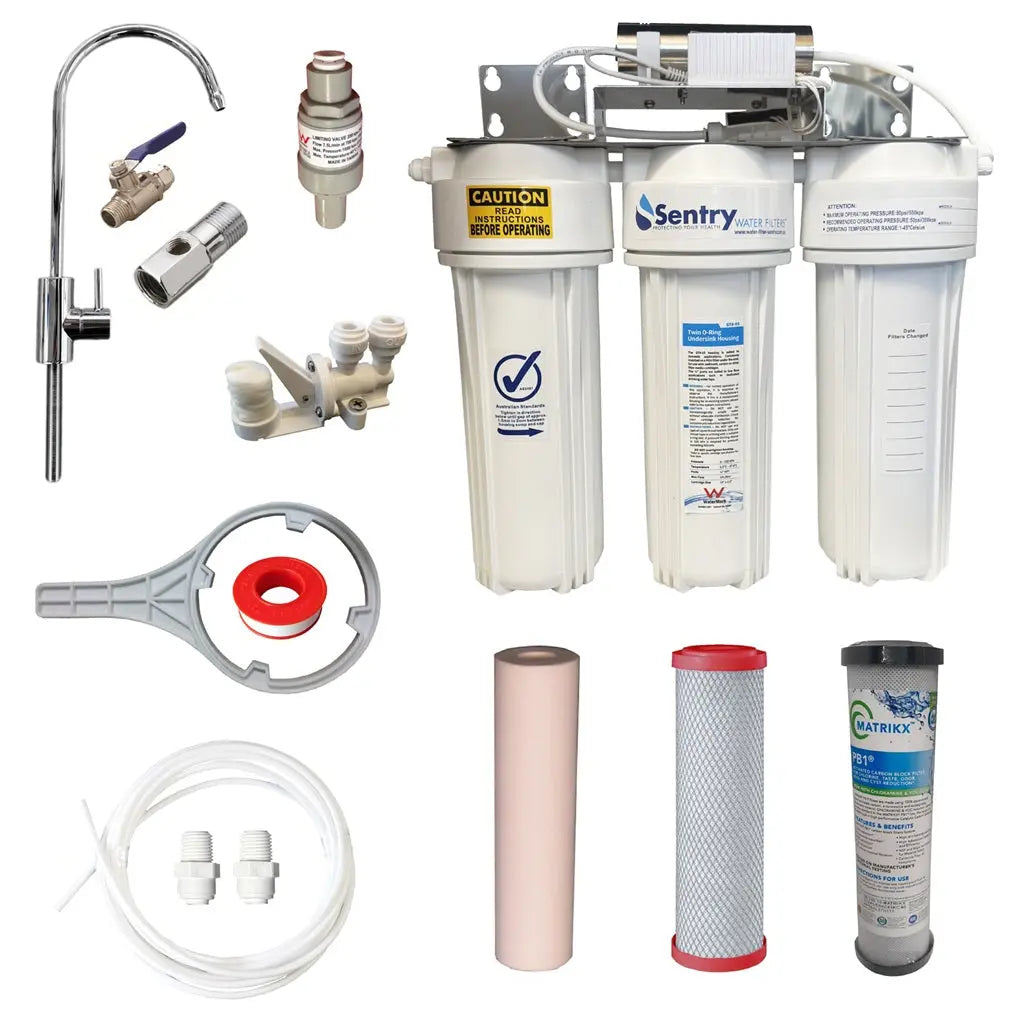

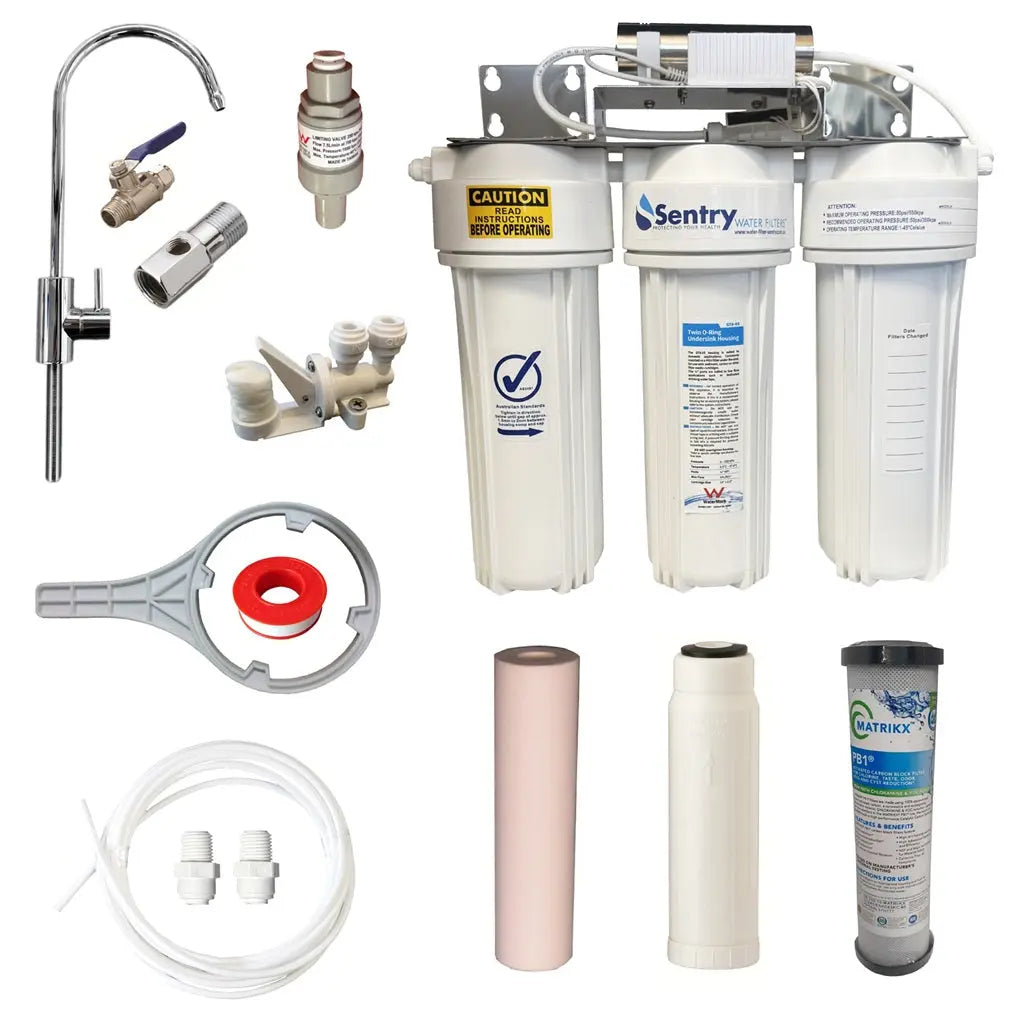

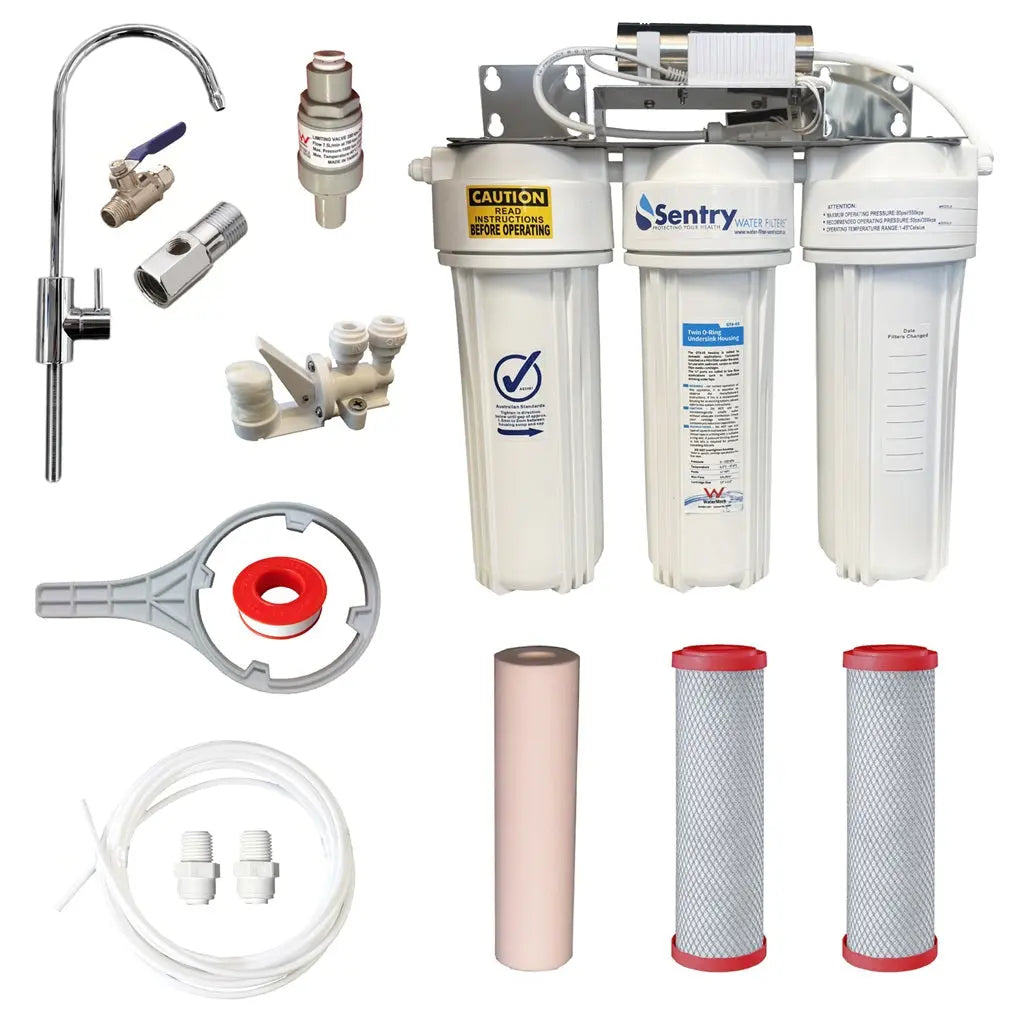

Included:
- Marine grade stainless steel bracket

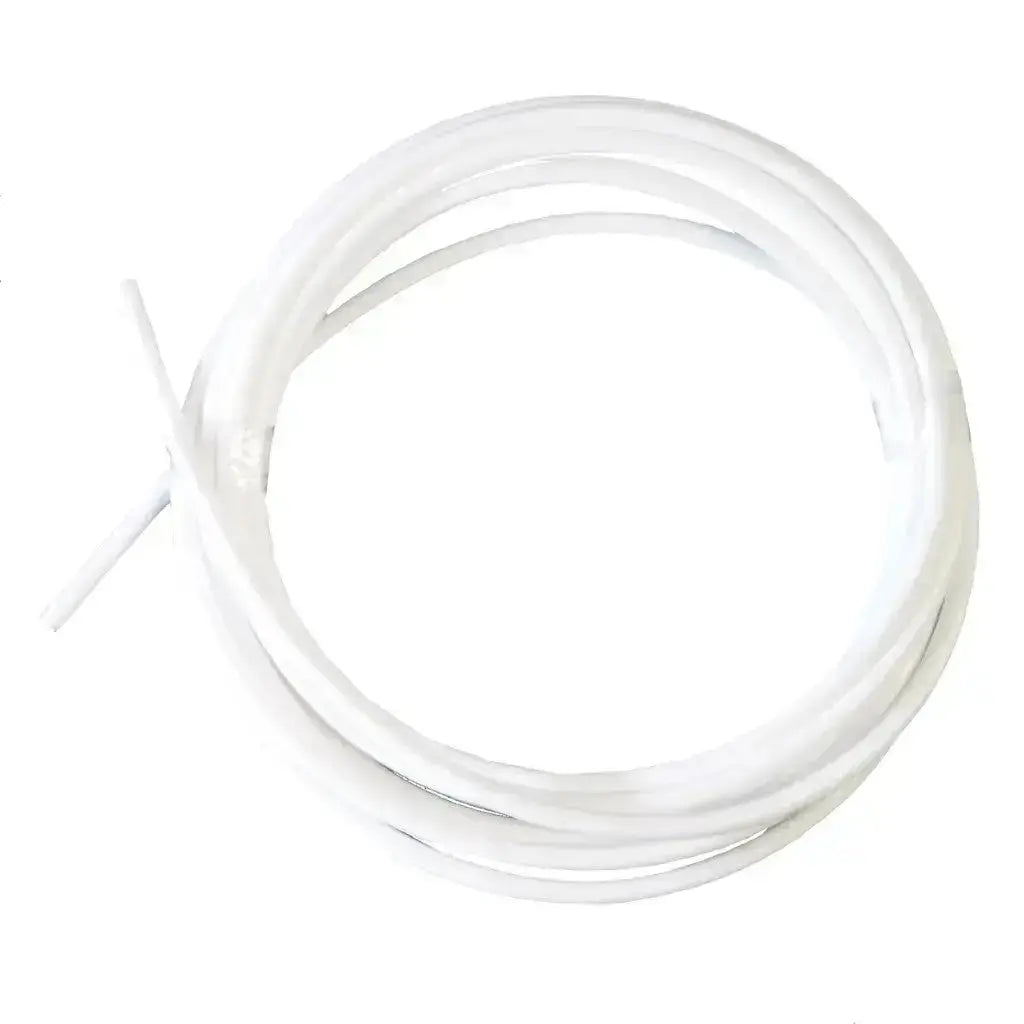

- 3x meters of high pressure 1/4" | 6mm water filter tubing
- 1x roll of plumbing tape

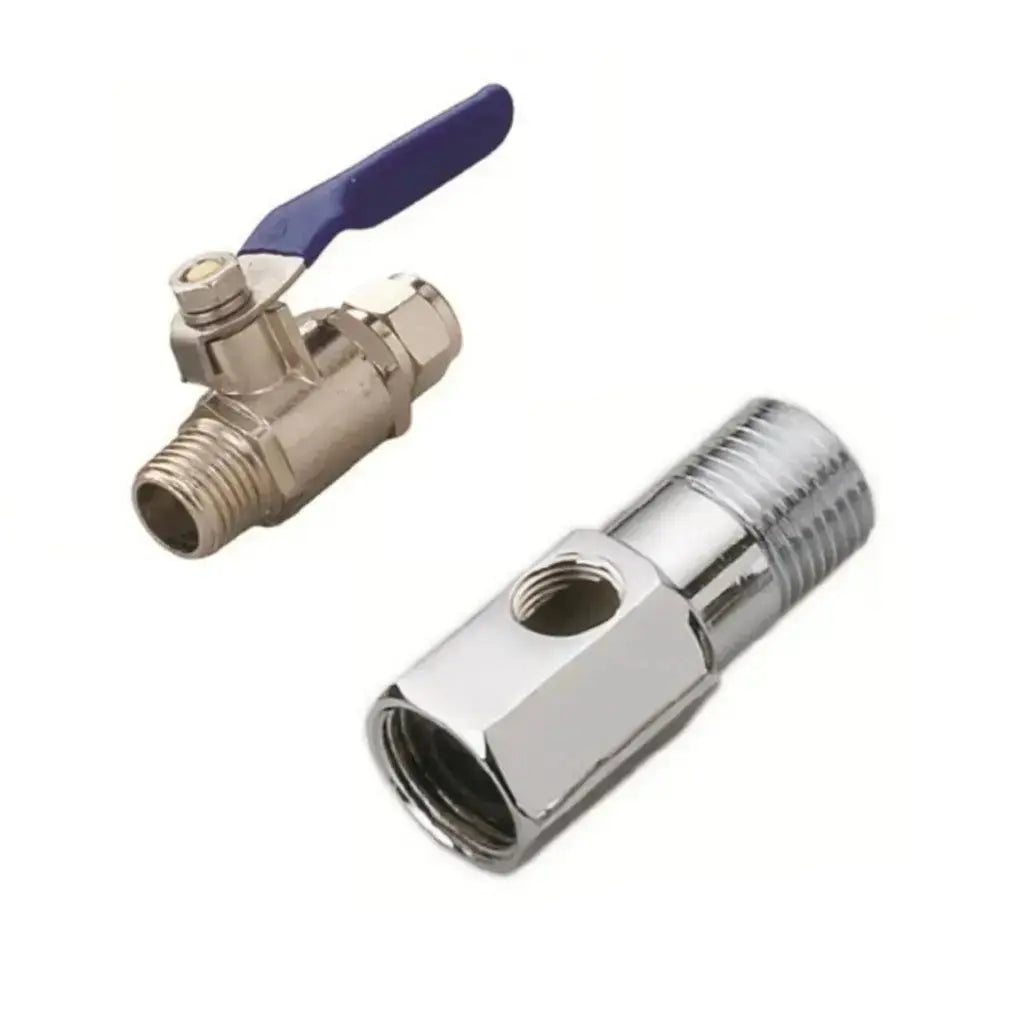

- 1x 1/2" inlet and ball valve

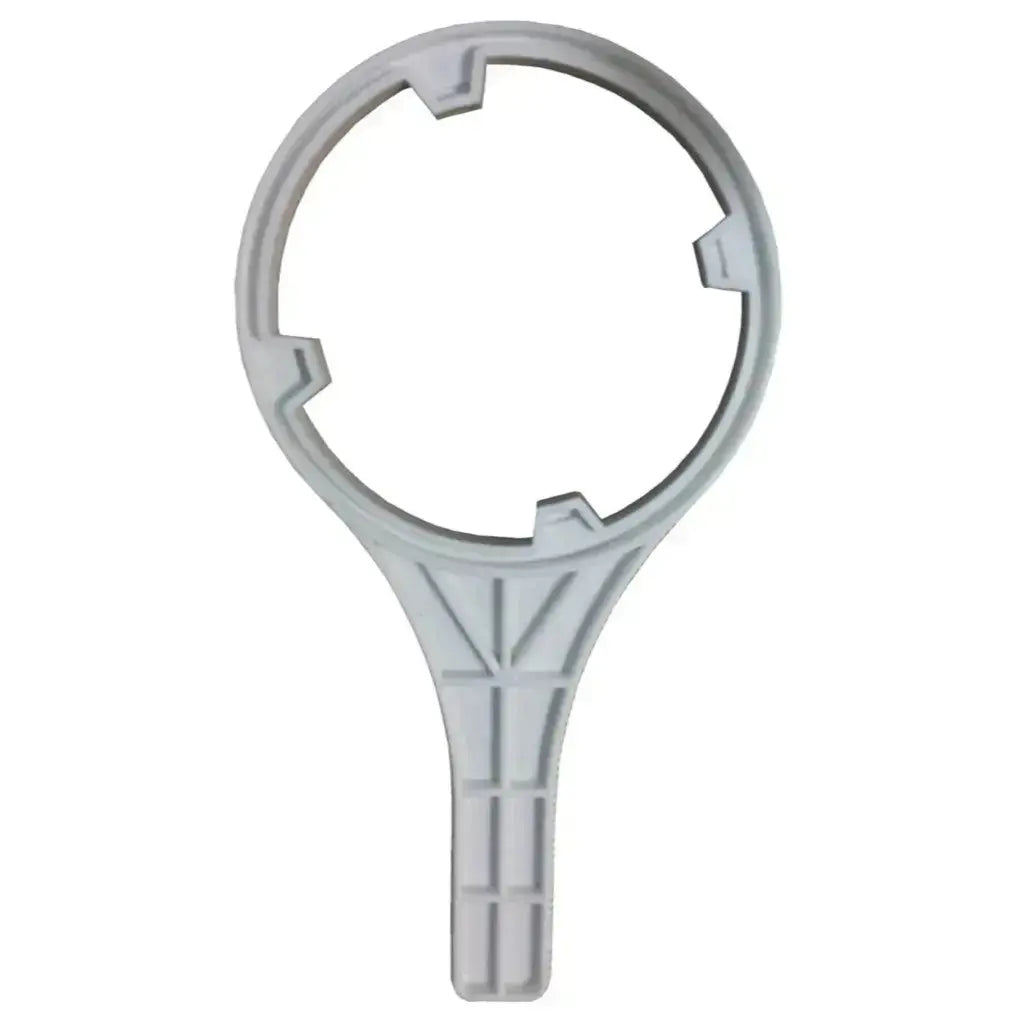

- 1x opening + closing housing ring spanner
- 1x 0.5 Micron Spun Sediment Filter
- 1x Second Filter of your choice
- 1x Third Filter of your choice

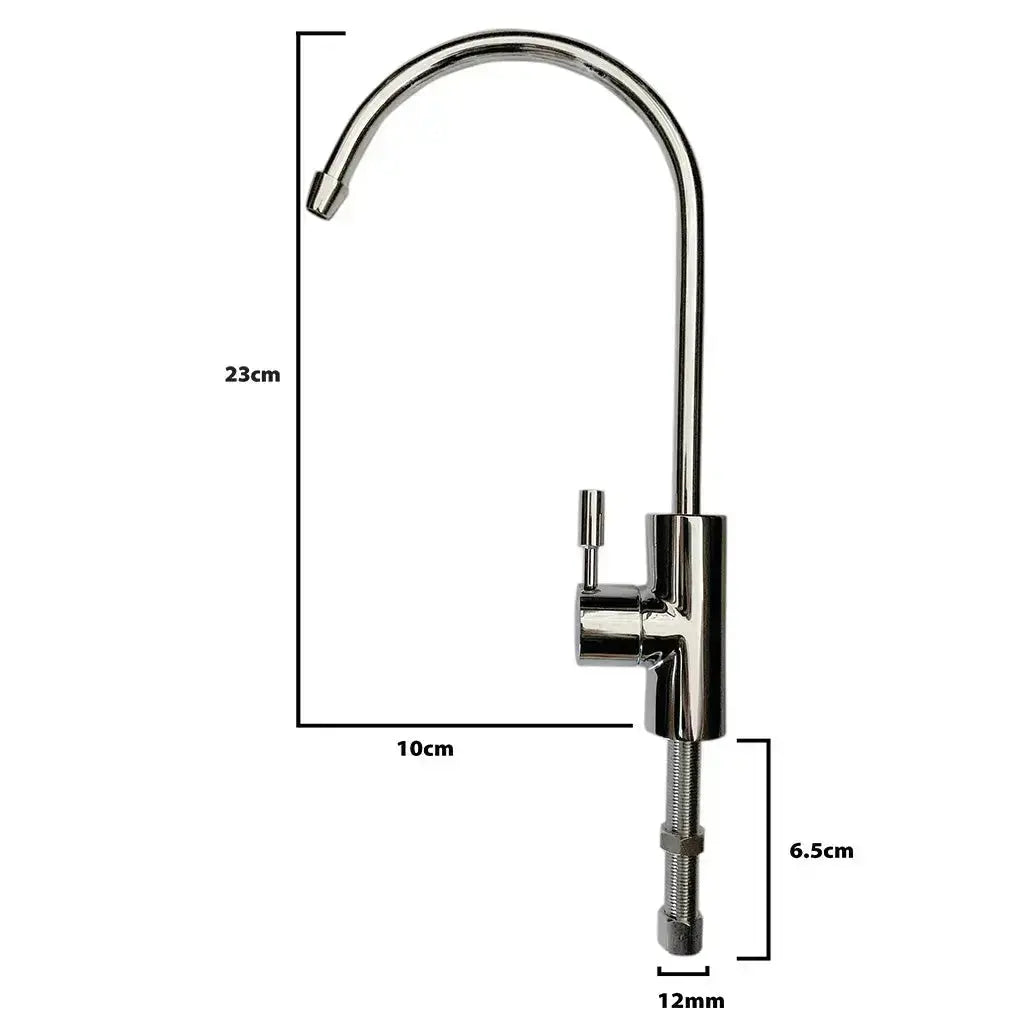

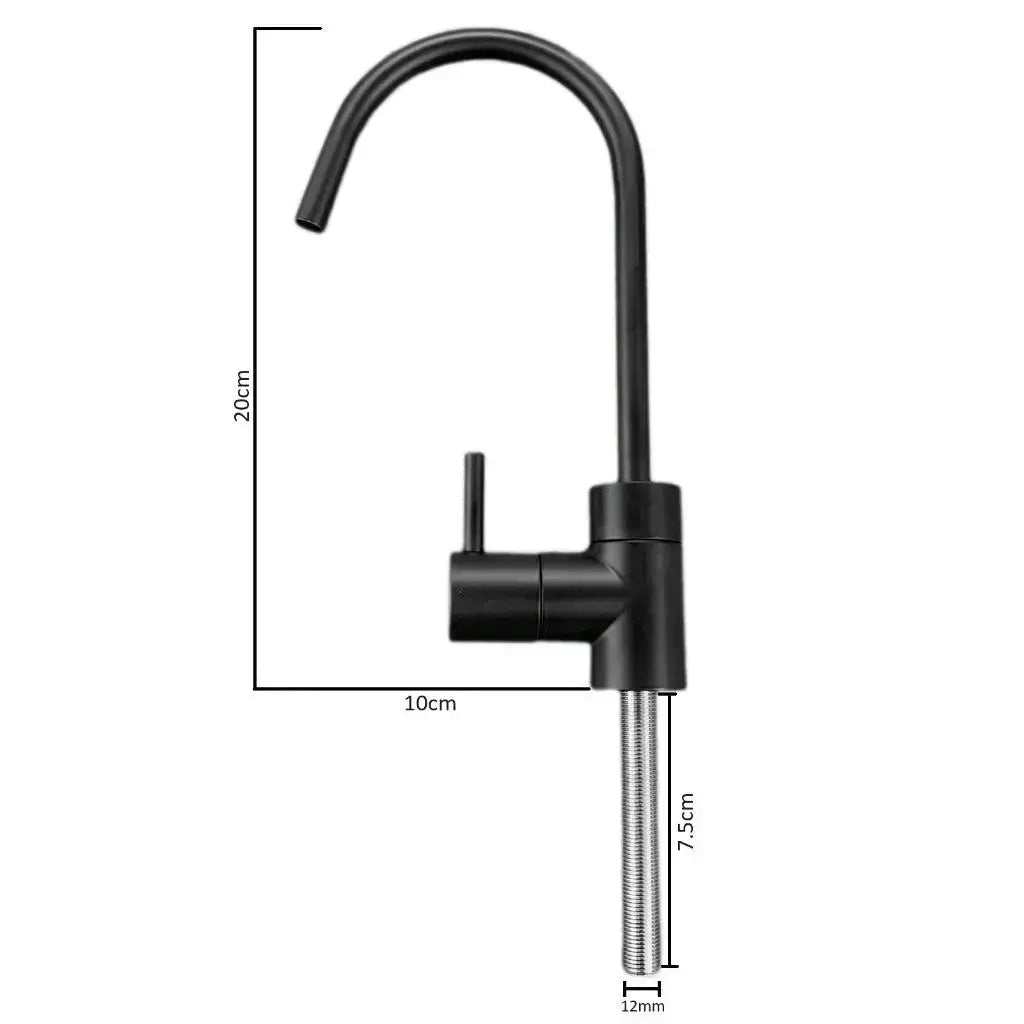

- Drinking water tap/faucet of your choice. Images 9-11 Show drinking water taps/faucets available in the dropdown selection menu.

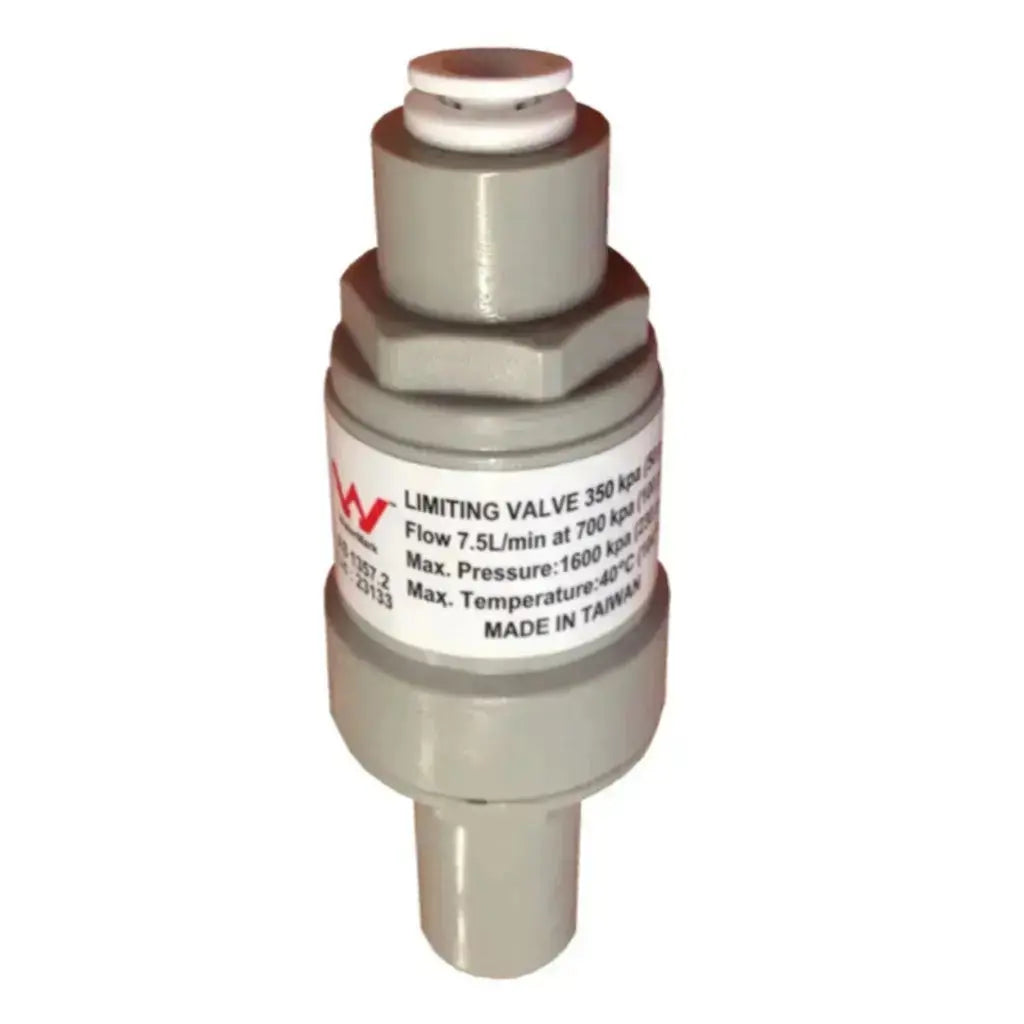

- The 350kpa PRV + NRV (Image 6) extends the life of the system by reducing pressure and preventing housing cracks.

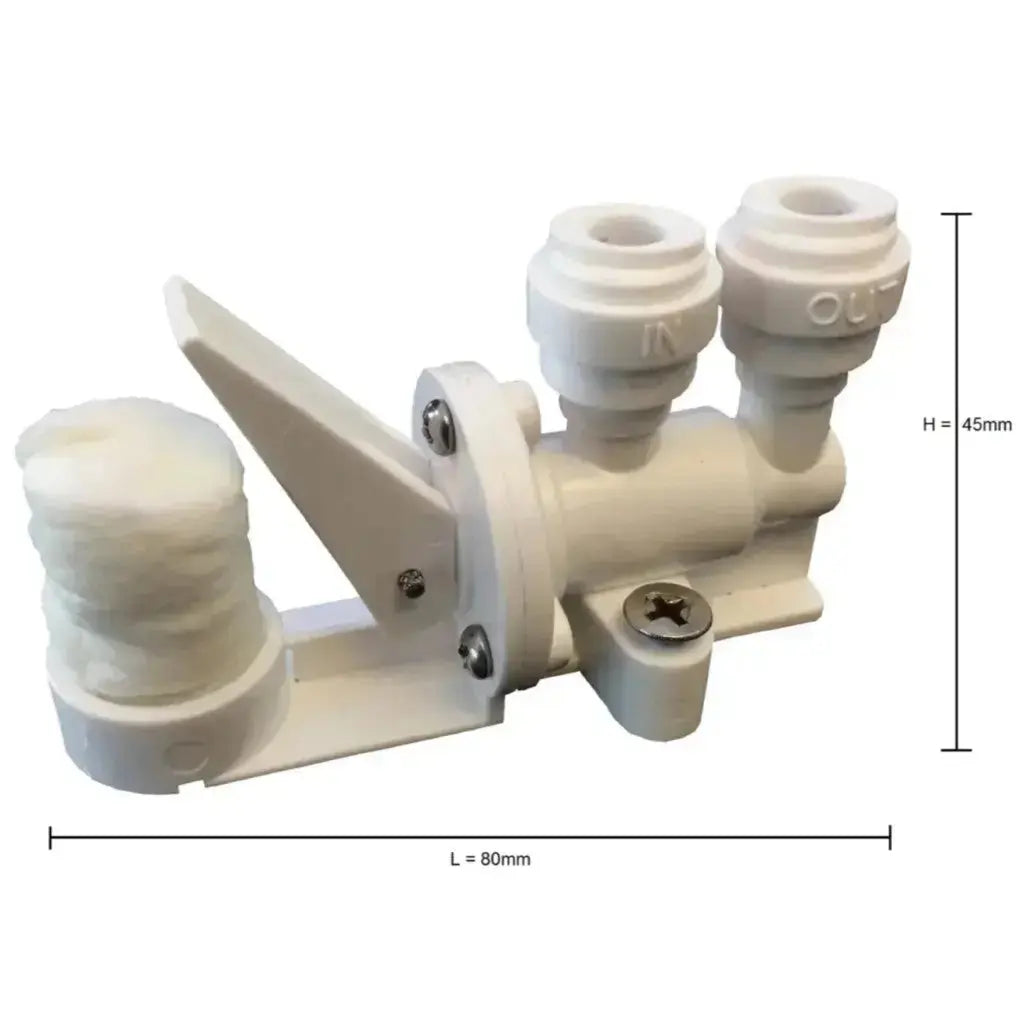

- Leak stop device (Image 7) shuts off the water supply if a leak occurs.
Compatibility: This system is compatible with all standard 10" x 2.5" water filter cartridges.
- Sediment spun filters: Approx. [12.5cm x 7cm]
- Carbon block filters: Approx. [12.5cm x 7cm]
Filters should be replaced every 6-12 months, depending on environmental factors.
This unit has a 36-month warranty which is subject to our warranty terms and conditions, regular filter changes to be done as recommended using our replacement filters, media and consumables and is installed with a pressure reducing valve and leak shut off device.
Regulatory Compliance: In line with regulatory standards, any water filter system under constant water pressure must include an AS3497-approved pressure-reducing valve and back-flow prevention device. We also recommend installing a leak detector shut-off device with any water filter or reverse osmosis system under constant pressure.
