IN LINE FRIDGE FILTER KIT [CHLORINATED MAINS WATER]
Brand of filter supplied may vary but will be equivalent in quality
Fits all fridges + coolers + bubblers + ice makers + coffee machines using in line filters
Depending on selection in drop down selection menu this item includes the items below
In every order fixed item below is included and if selected variable items as selected

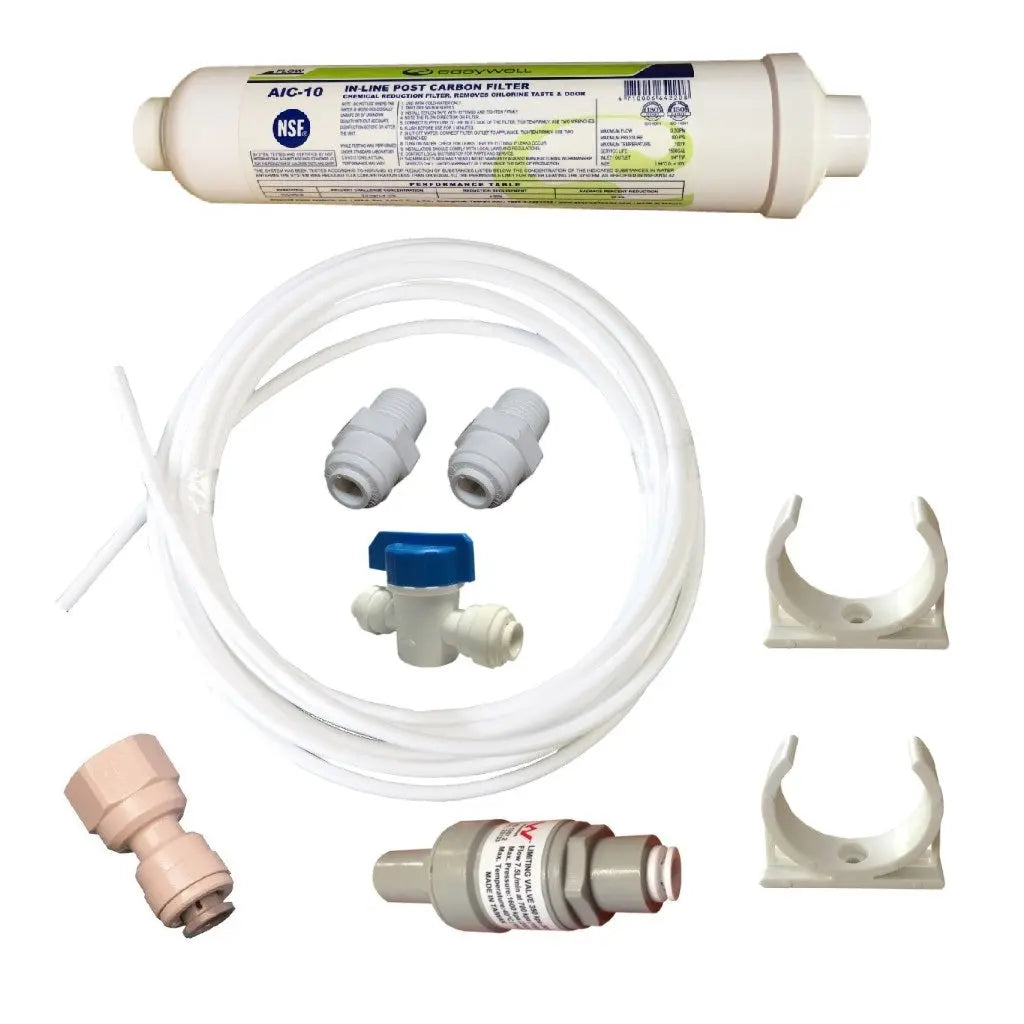

Fixed Items
in line 10"x2.0" GAC filter
2x reusable quick-fit push in connectors
2x brackets
1x 1/4" to 1/4" tubing shut-off tap
1x 1/2" Female to 1/4" Tube Tap Connector

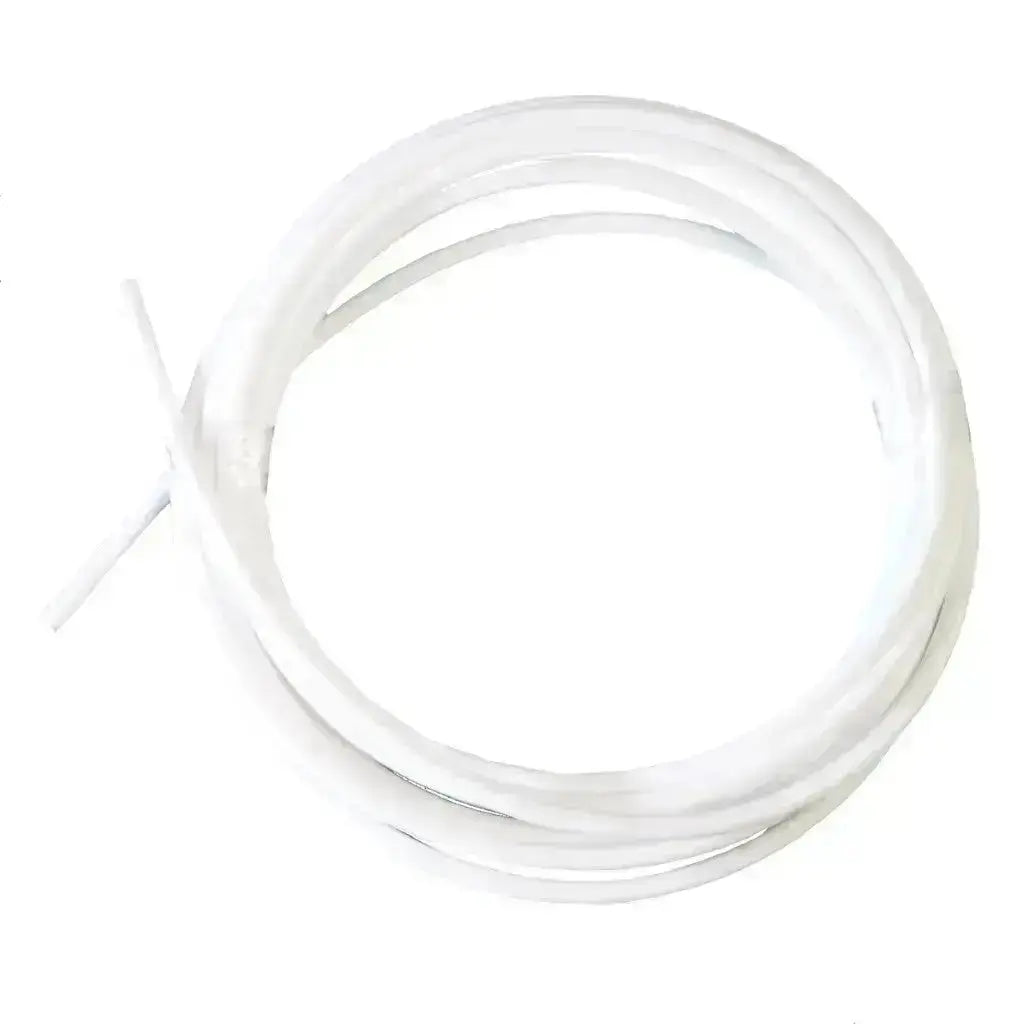

2m of high pressure tubing
* may be supplied as two single or one double bracket unless you make a specific request

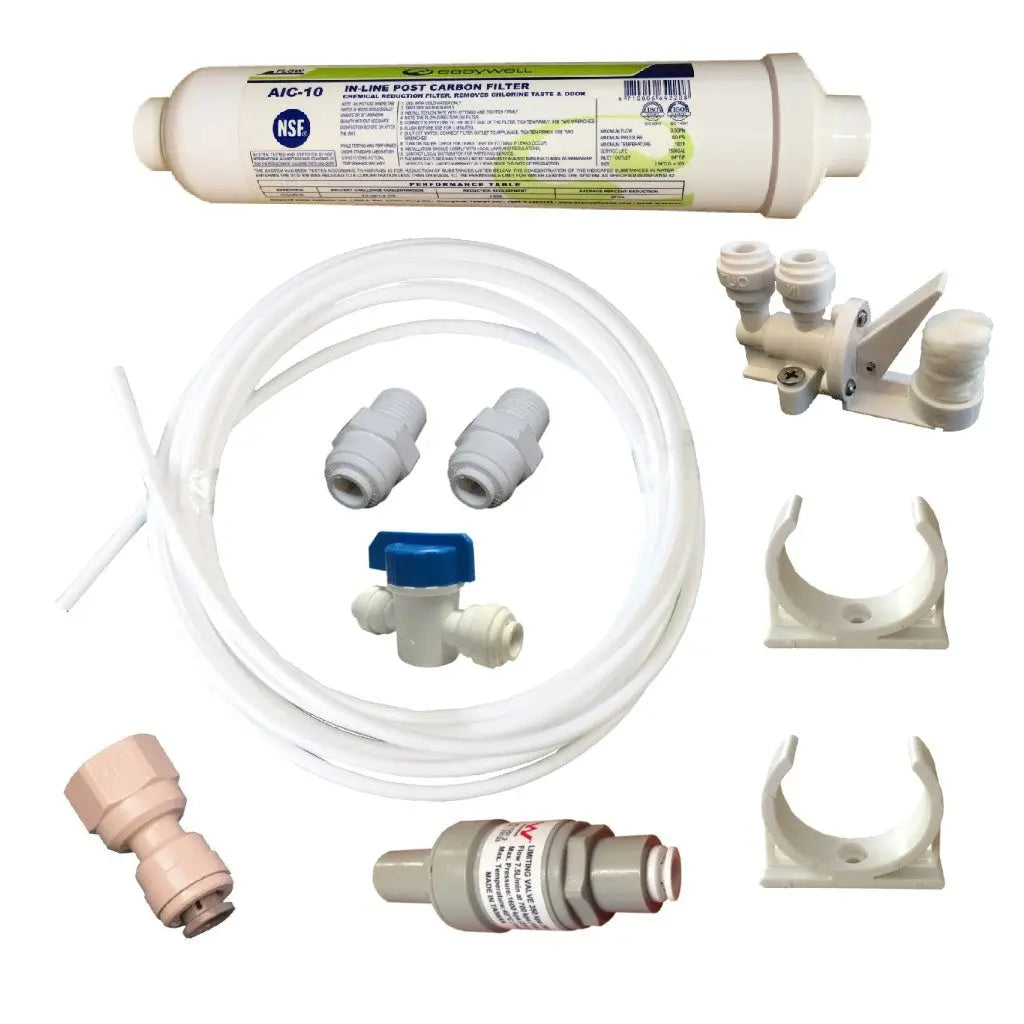

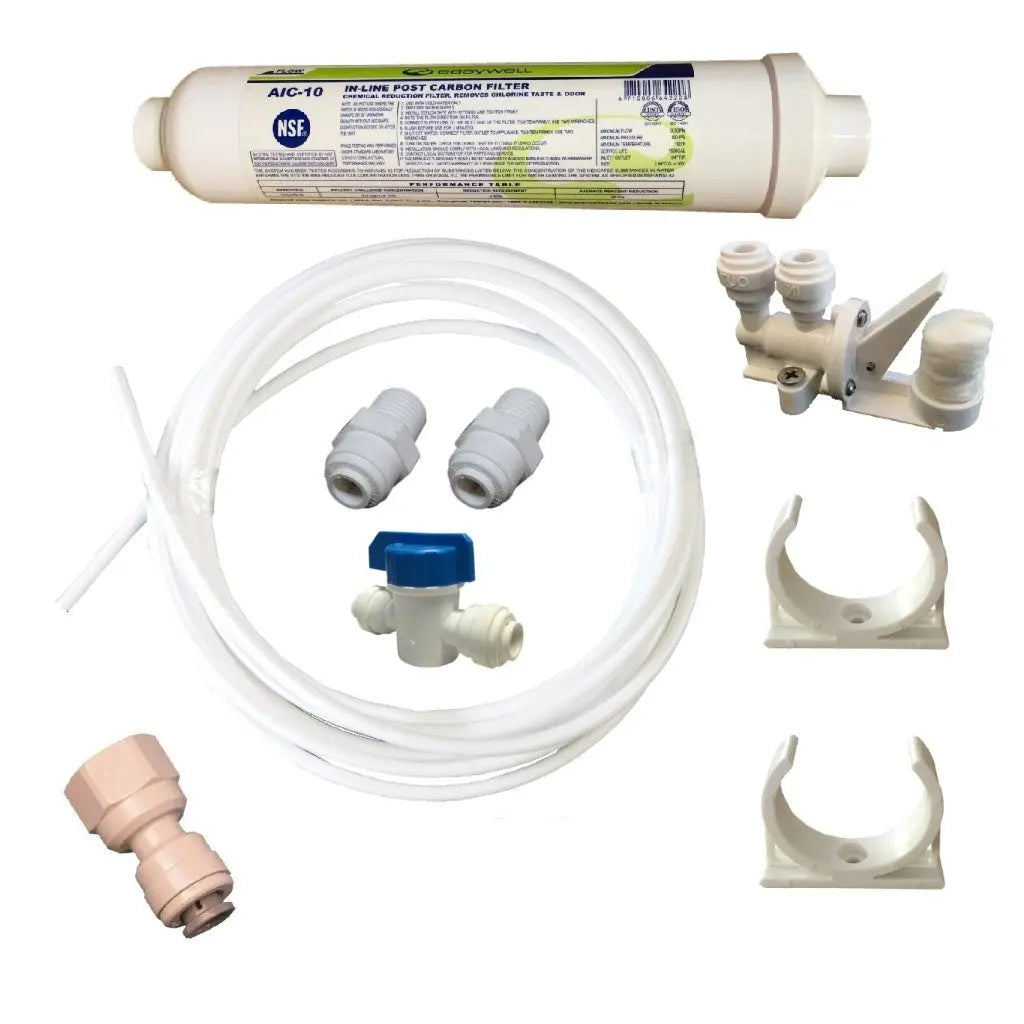

Variable Items [Images 5-7]

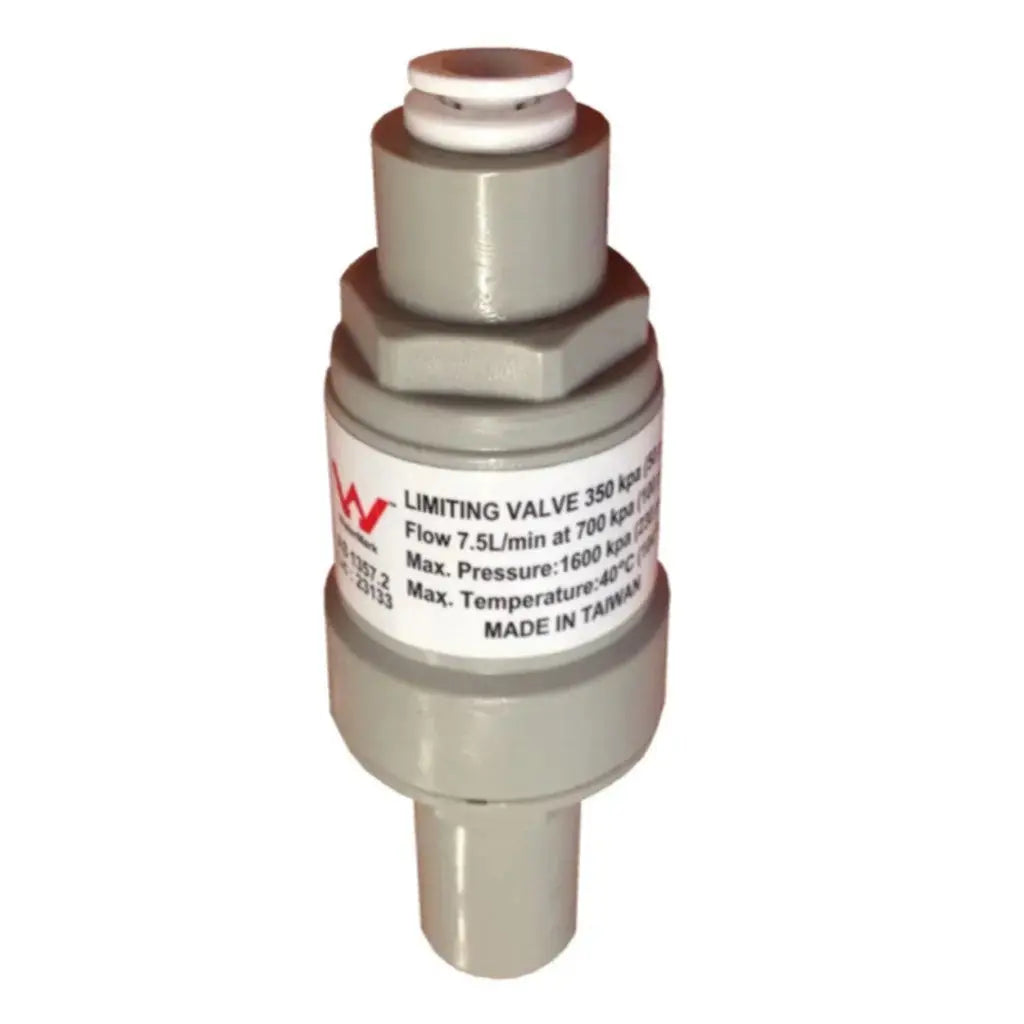

350kpa pressure reducing valve*
550kpa pressure reducing valve*

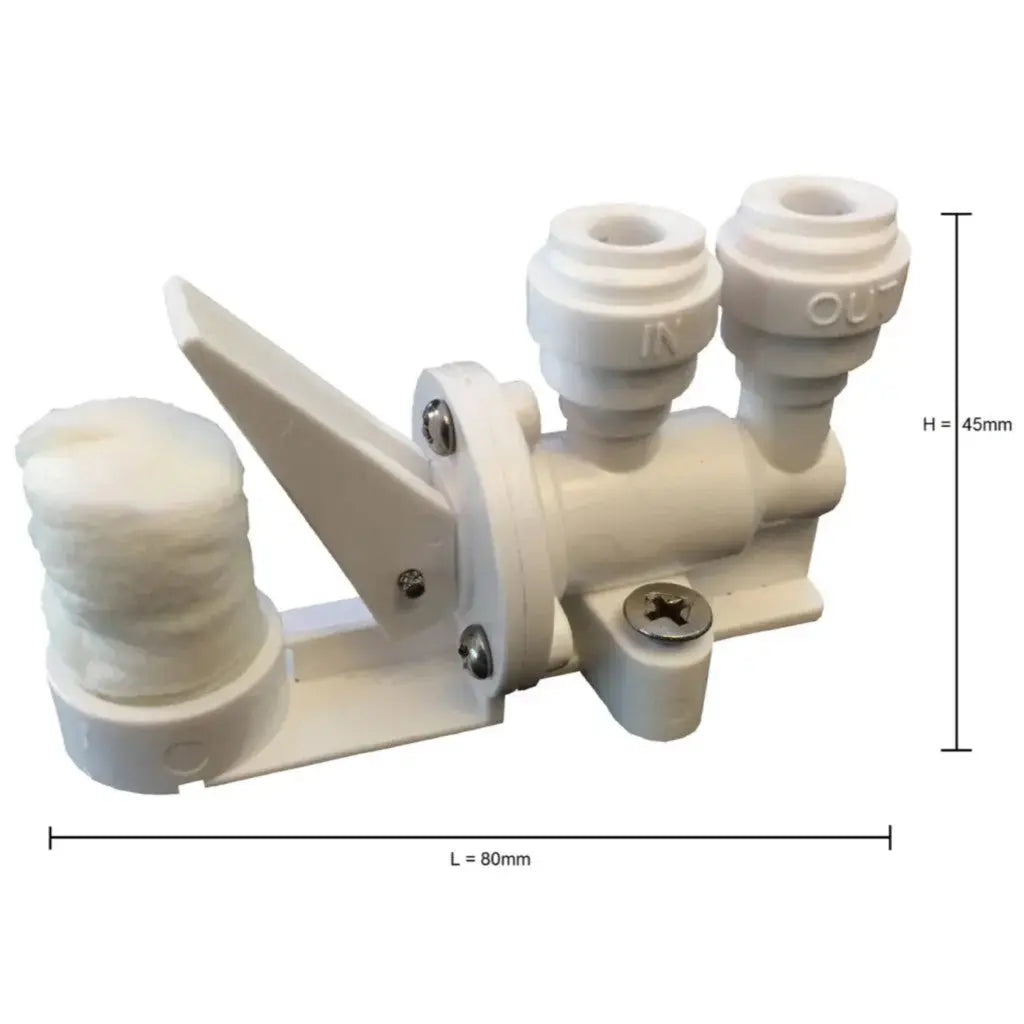

Leak stop detection device + 2 pads
* Approved PRV which includes non-return valve to stop pressure cycling and reduce wear on filters
Used to remove chlorine and improve taste of chlorinated town water and filter sediment from potable water supply
(not for use to remove cryptosporidium, giardia, blastocysts, cysts and bacteria)
This item is supplied with 2x ¼”npt threaded to ¼” tube [outside diameter is +/- 6mm] quick-fit connectors. You’ll need to apply 6-10 laps of plumbing tape on the threaded side of the fittings before use.
According to regulatory standards any water filter system under constant water pressure [regardless of the brand or supplier] is required to be fitted with an AS3497 approved pressure reducing valve and back-flow prevention device which we have listed separately in our store. We also recommend that a leak detector shut off device is installed with any water filter and / or reverse osmosis system which is under pressure which is also for sale in our store
If you are not entirely satisfied with your purchase please contact us so that we can try to resolve your concerns
