Sentry Water Filters

Ultra Violet Water Steriliser Tank Rainwater Bacteria Filter UV Sterilisers

Ultra Violet Water Steriliser Tank Rainwater Bacteria Filter UV Sterilisers

Regular price $214.50 AUD
Regular price Sale price $214.50 AUD
Sale Sold out
Taxes included. Free standard shipping Australia-wide.
Quantity

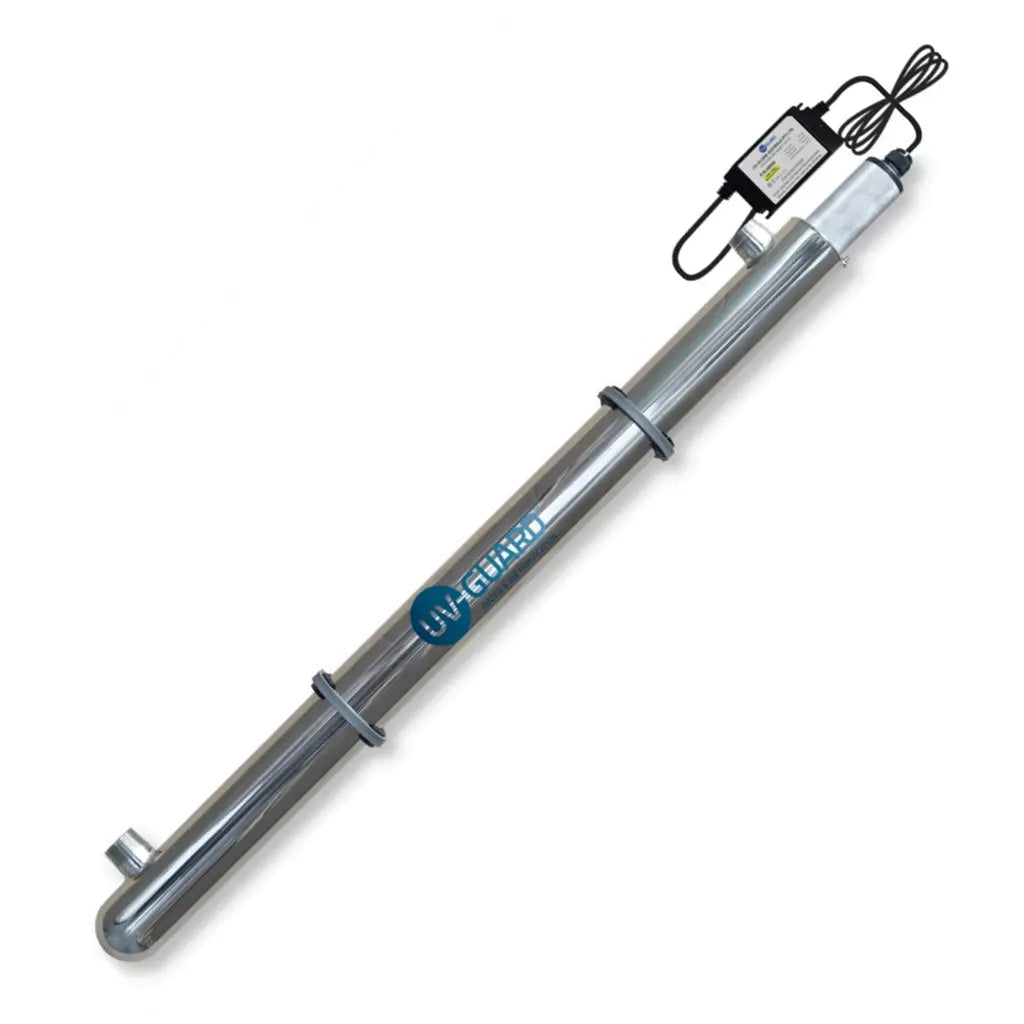

ULTRA VIOLET WATER STERILISERS TANK WATER FILTER SELECT UV

Ultra Violet Water Sterilisers Tank Water | Select UV Rate

IN THIS RANGE, ONLY THE 40W UV SYSTEM HAS WATERMARK CERTIFICATION. IF YOU NEED A SMALLER UV SYSTEM WITH WATERMARK CERTIFICATION, WE HAVE OPTIONS LISTED IN OUR STORE; JUST SEARCH "UVG"

Depending on variation selected in drop down menu above we will supply as follows

UV Filter Strength

Item Specifics

Port Size


[1] 06w | Filters 3.8LPM



UV 1GPM | 3.8LPM + Ballast + 304SS Tube [No Hour Counter]
Length of UV housing = +/- 28cm and tube diameter = +/- 5cm


1/4"NPT
FEMALE


[2] 14w | Filters 7.5LPM



UV 2GPM | 7.5LPM + Ballast + 304SS Tube [No Hour Counter]
UV housing length = +/- 35cm and tube diameter = +/- 5.5cm


1/4"NPT
FEMALE


[3] 20w | Filters 22.5LPM



UV 6GPM | 22.5LPM + Ballast + 304SS Tube [No Hour Counter]
Length of UV housing = +/- 50cm and tube diameter = +/- 6cm


1/2"BSP
  MALE


[4] 40w | Filters 45LPM



UV 12GPM | 45LPM + Ballast + 316SS Tube [No Hour Counter]
Length of UV housing = +/- 90cm and tube diameter = +/- 7cm


1"BSP
MALE

Use the flow rate specified for your water type. Water should be pre-filtered to remove sediment and suspended particles before entering the UV chamber, as these particles can shield bacteria and other microorganisms from UV light and reduce disinfection effectiveness. Follow the manufacturer’s requirements for pre-filtration, water quality and maximum flow rate.

Ultra-violet water sterilisation is one of the most effective methods of sterilising water, it uses no chemicals whatsoever and will leave no harmful residues in your water. UV is used as an effective alternative to chemical or thermal disinfection, as a result, it is used extensively in the water, food and medical industries as a proven technology.

System output varies per the drop down selection menu which is detailed in the above table. For UV sterilisation to be effective and to attain the maximum flow rate of the unit, the water will need to be pre-filtered for sediment to at least 10 micron, optimally 5 micron or finer. Given sufficient pre-filtration UV is effective on all water sources, including rain, bore, town and river/lake water.

UV is effective at treating Bacteria, Viruses, Algae, Fungi and other Micro-Organisms up to 99.99% efficiency on all water supplies and is effective at treating for Cryptosporidium, Giardia, Blastocysts and other cysts in water supplies.

This system includes:

  • 304 grade stainless steel housing

  • 220-240v indoor electronic ballast

  • Mounting brackets

  • Quartz transmission tube

  • Quality 4-pin UV-C bulb

It is recommended that this system is used in conjunction with a filtration system to maintain optimum efficiency, send us a message and we will be happy to recommend the most suitable unit for your application.

Some images in this listing may show items that are not included in the sale. They are there for information, to show how the product is used with other products or to show related products. If you have any doubt about what is included, just send us a quick message and we'll confirm and clarify for you.

The express postage cost of this item is for the 6w to 20w UV systems based only. If you need a larger system sent by express the cost let us know your delivery post code and we will quote you for express post.

This stainless steel housing has a lifetime warranty which is subject to our warranty terms and conditions, regular lamp changes to be done as recommended using our replacement lamps, media and consumables and is installed indoors out of full direct sunlight [a PRV must be installed before this unit or on whole of house].

It is normal for the first glass of water after the unit hasn't been used for a while to be warm. There are systems on the market that turn the lamp off when not in use but we don't recommend this as these lamps take a few seconds to reach optimum efficiency so when turning on and off they are less effective. They don't use much electricity and are made to stay on so the continuous off / on may shorten the life on the lamp.

Warranty does not cover UV bulb, as this is considered a consumable, there is a 30 day replacement guarantee on faulty bulbs. You will need to be able to verify that you have used a power surge protector with this system as the bulbs and ballast / transformer can be damaged by power surges [the ballast / transformer has a 12 month warranty].

According to regulatory standards any water filter system under constant water pressure [regardless of the brand or supplier] is required to be fitted with an AS3497 approved pressure reducing valve and back-flow prevention device which we have listed separately in our Sentry Water Filters online store.

Why Choose an Ultra Violet Water Steriliser?

An Ultra Violet Water Steriliser is an effective and chemical-free method for sterilising water. It is a proven technology used in various industries and is highly effective at treating Bacteria, Viruses, Algae, Fungi, and other Micro-Organisms with up to 99.99% efficiency. This system is an excellent alternative to chemical disinfection, leaving no harmful residues in your water.

Compact Design and Powerful Performance

This product is available in four different strengths, with flow rates ranging from 3.8 to 45 litres per minute. Each unit includes a 304-grade (or 316-grade for 40w) stainless steel housing, an electronic ballast, mounting brackets, a quartz transmission tube, and a 4-pin UV-C bulb. For optimal performance, the water needs to be pre-filtered for sediment to at least 10 microns. The system is effective on all water sources, including rain, bore, town, and river/lake water.

Seamless Integration and Easy Maintenance

The UV steriliser is designed to be a permanent fixture and can be used in conjunction with a separate filtration system. The stainless steel housing has a lifetime warranty (subject to regular lamp changes) and the ballast/transformer has a 12-month warranty. The UV bulb is considered a consumable and has a 30-day replacement guarantee for faulty bulbs. It is recommended to install a pressure reducing valve before the unit for systems under constant pressure. The system is designed to be left on continuously for maximum effectiveness.
