4-STAGE 100GPD DEIONISING RO PURIFIER
DOMESTIC RO DI SYSTEM WITH BOOSTER PUMP AND PORTABLE STAND
THIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISES
Final stage DI filter is used as a final polishing stage to remove the last of the contaminant from your water. DI resin will reduce the TDS (total dissolved solids) reading of the RO product water to between 0-1ppm. This type of system would suit use with marine fish tanks or for non-consumption, this system is not suitable for drinking water due to the extreme purity.
This purification process is commonly considered to be the most effective method of purification available to the public and will consistently produce the lowest level of contaminant.
This system will produce +/- 380 litres per day [depending on the purity required and the quality of feed water this can vary by up to +/-10%]
Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.
Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average and with the post membrane 10"x2.5" deionising mixed resin filter this will increase to 99.99%-100%.
Our systems are effective in removing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.
CONTAMINANT |
REDUCTION
|
CONTAMINANT
|
REDUCTION
|
Barium
|
99.99%
|
Potassium
|
100%
|
Bicarbonate
|
100%
|
Radium
|
99.99%
|
Cadmium
|
99.99%
|
Selenium
|
99.99%
|
Calcium (Hardness)
|
100%
|
Silicate
|
99.99%
|
Chromate
|
99.99%
|
Silver
|
100%
|
Copper
|
100%
|
Sodium
|
100%
|
Detergents
|
100%
|
Strontium
|
99.99%
|
Fluoride
|
100%
|
Sulphate
|
100%
|
Lead
|
100%
|
PCB’s
|
100%
|
Magnesium
|
100%
|
Insecticides
|
100%
|
Nickel
|
100%
|
Herbicides
|
100%
|
All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.
SYSTEM SPECIFICATIONS:
Minimum feed pressure
|
15psi / 100kpa
|
Recommended feed pressure
|
15-80psi / 100-550kpa
|
Minimum operating temperature
|
5°C / 40°F
|
Maximum operating temperature
|
45°C / 110°F
|
Minimum feed water pH
|
pH 3
|
Maximum feed water pH
|
pH 11
|
Maximum feed water TDS
|
1000ppm*
|
Production rate
|
100GPD / 380LPD
|
*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

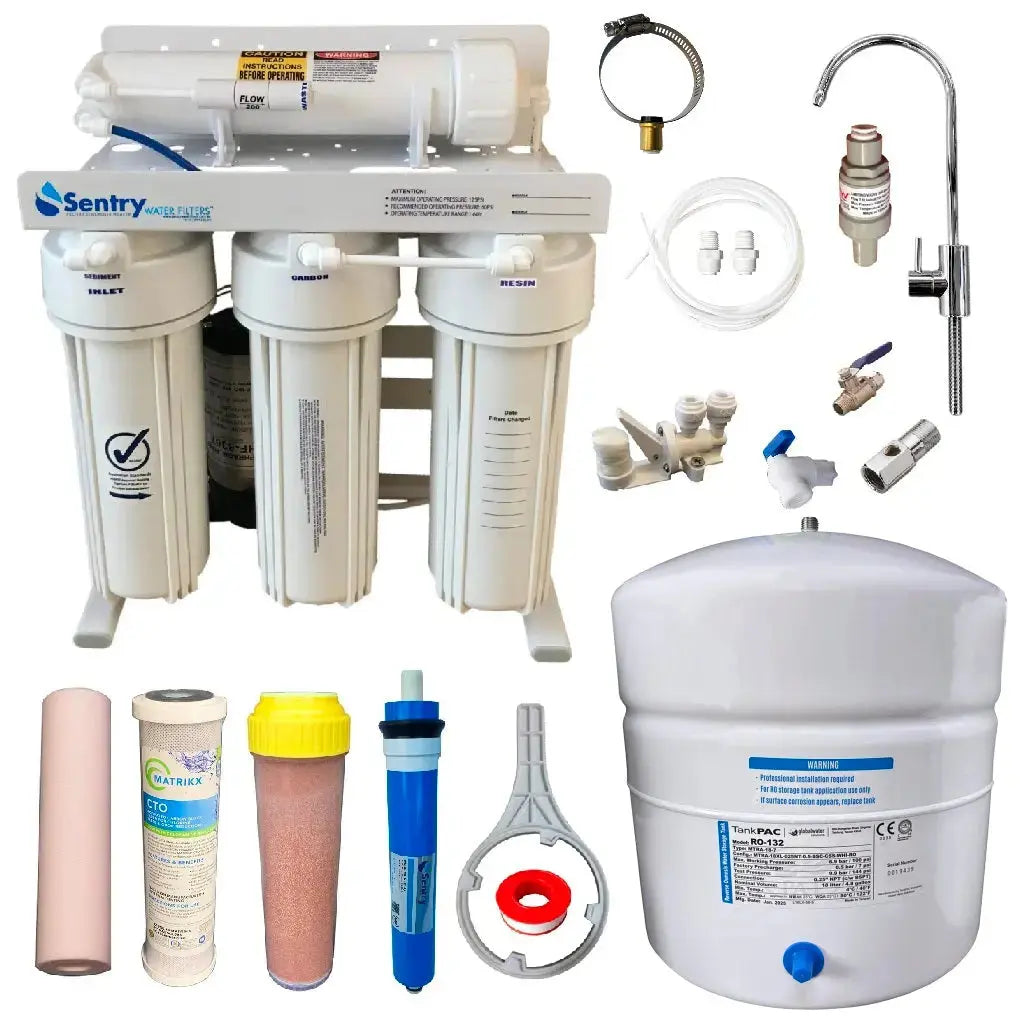

KIT INCLUDES:

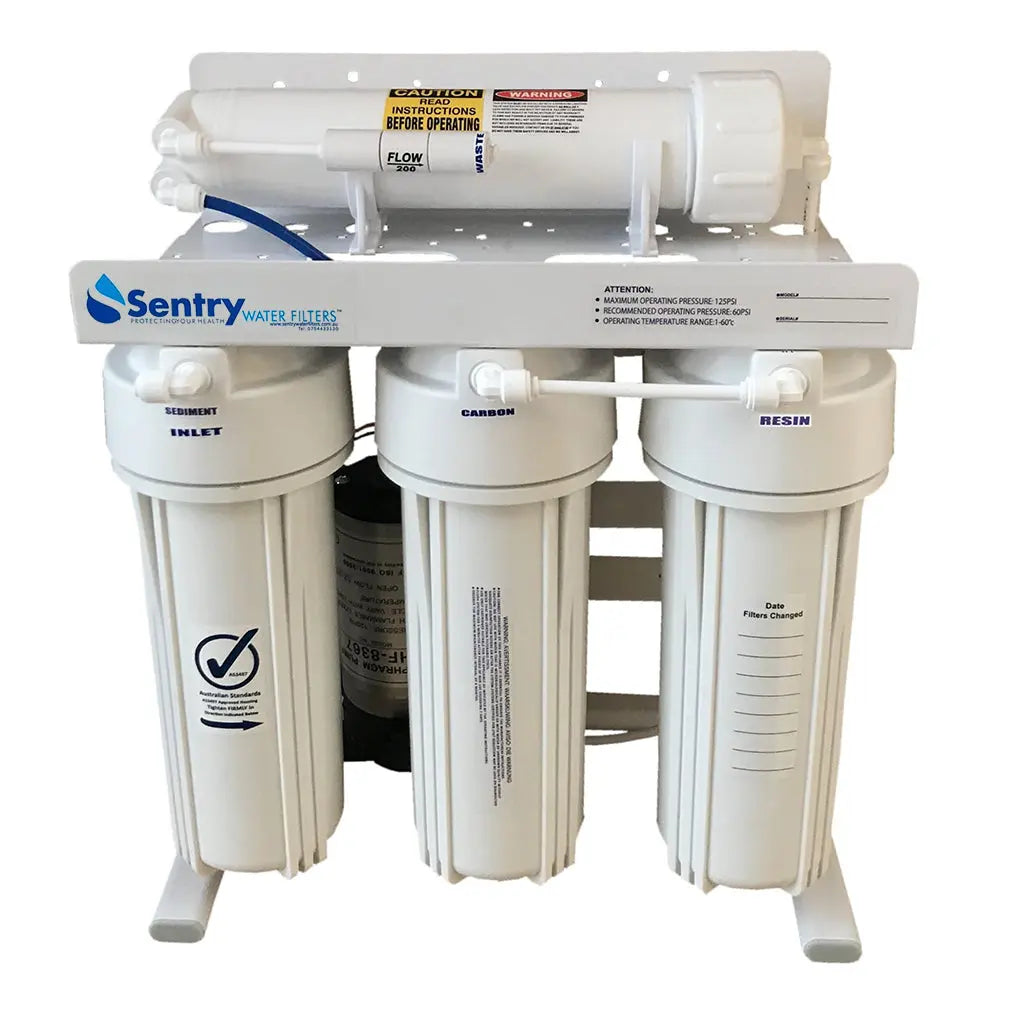

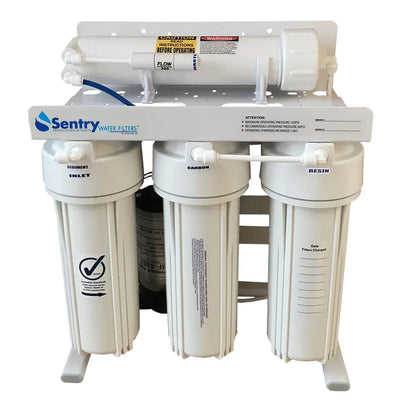

- Multi stage reverse osmosis unit:
- AS3497 tested and compliant 10"x2.5" pre-filter housings.

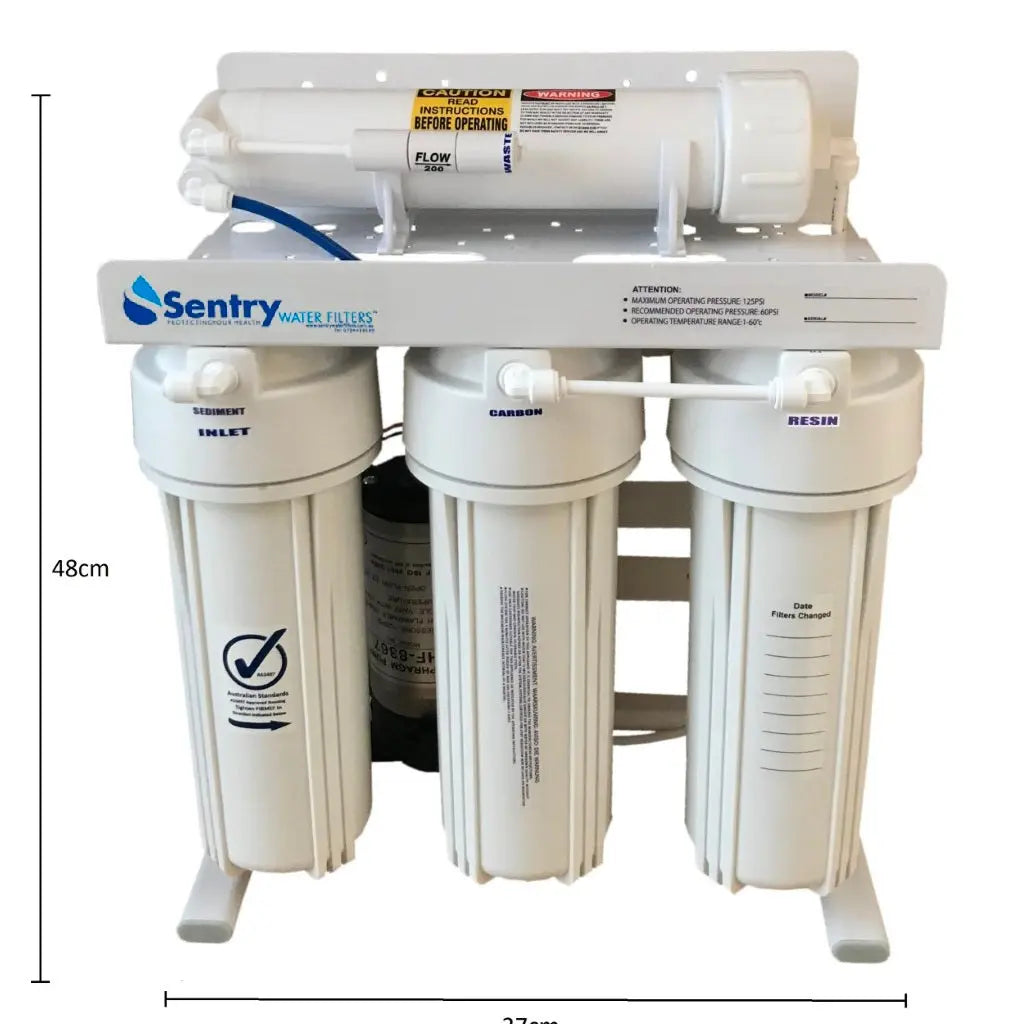

- Built on a steel white powder coated wall-mountable or stand alone stand.

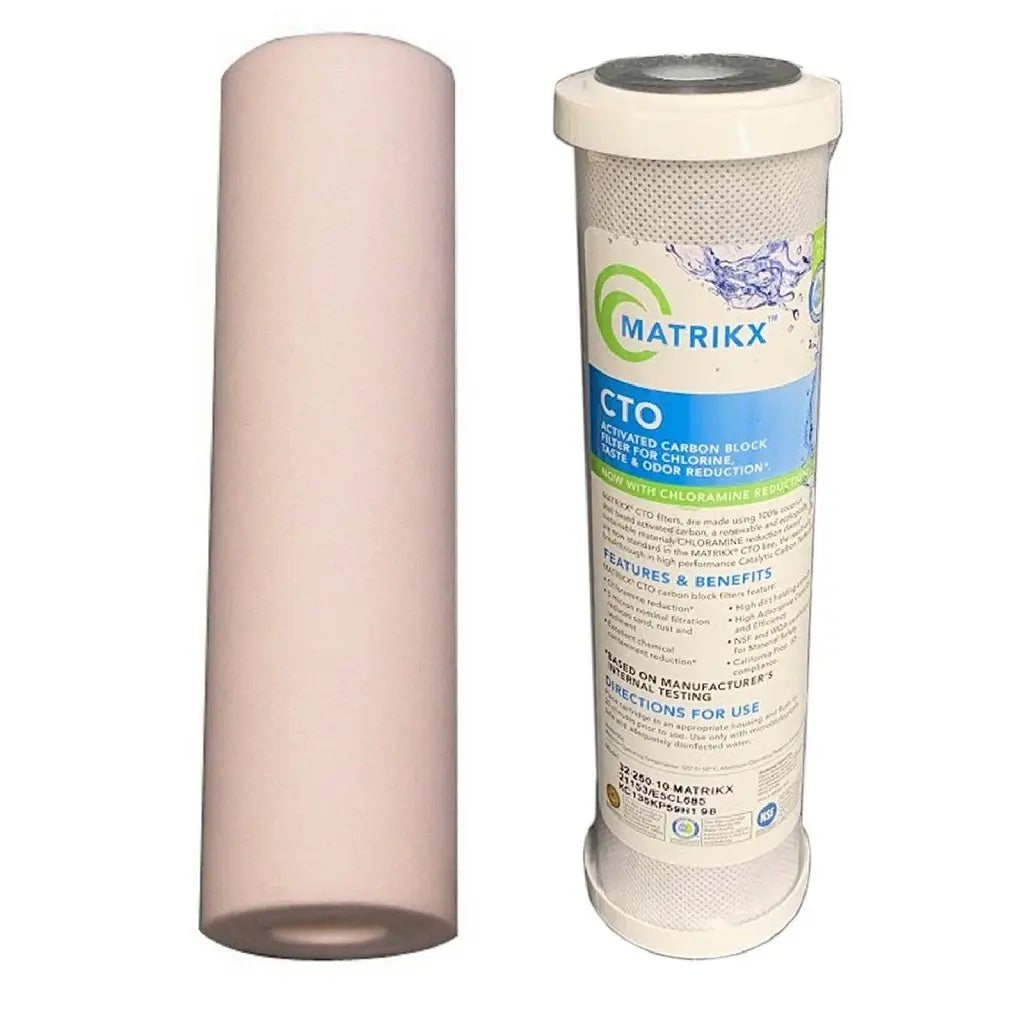

- One 10"x2.5" 0.5uM spun sediment pre-filter.
- One 10"x2.5" Hi-Vol activated CBC pre-filter.

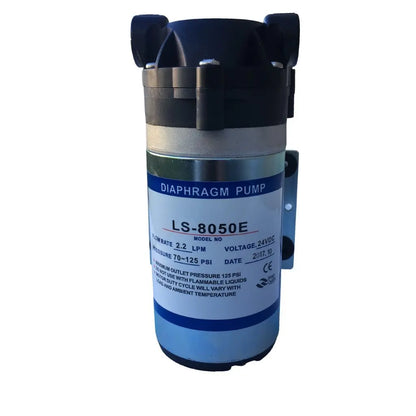

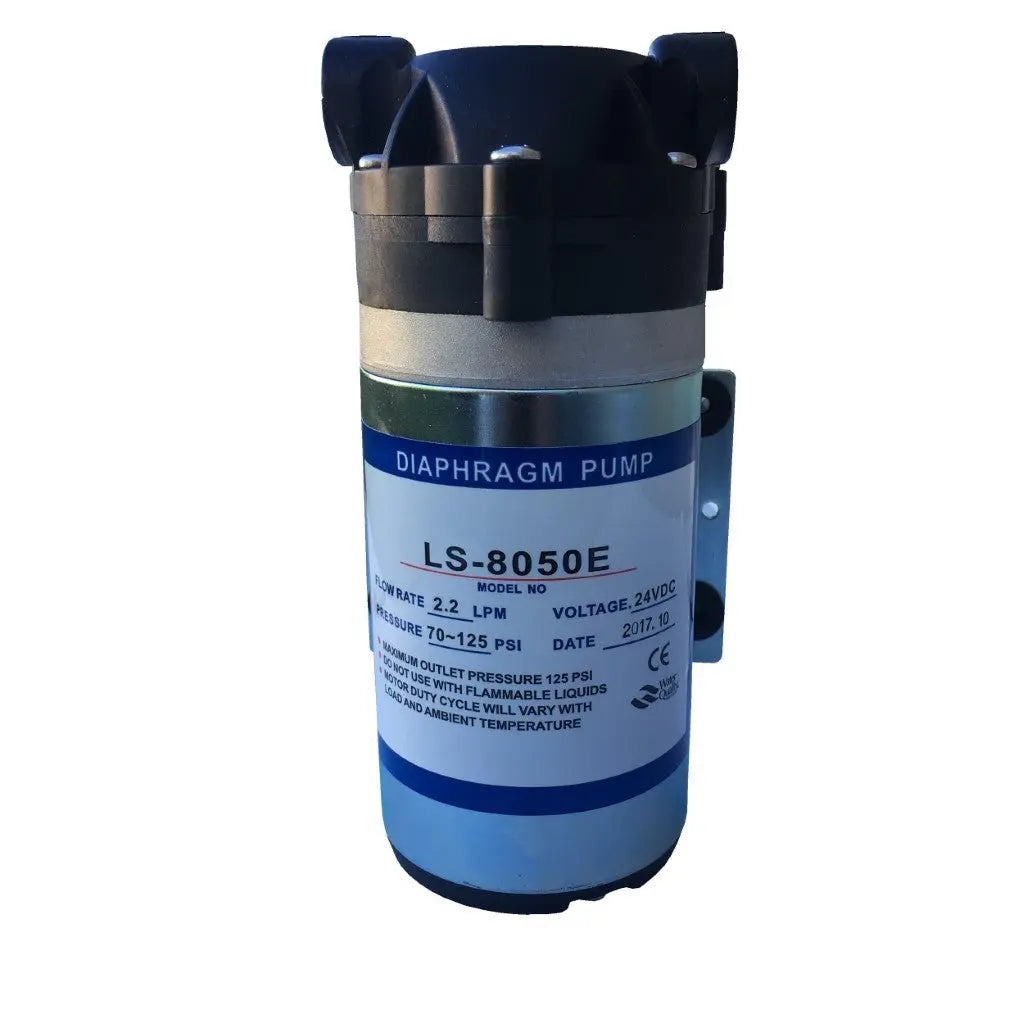

- One 125psi diaphragm booster pump [including Australian approved transformer].
- One 100GPD TFC membrane made using materials sourced from the USA.

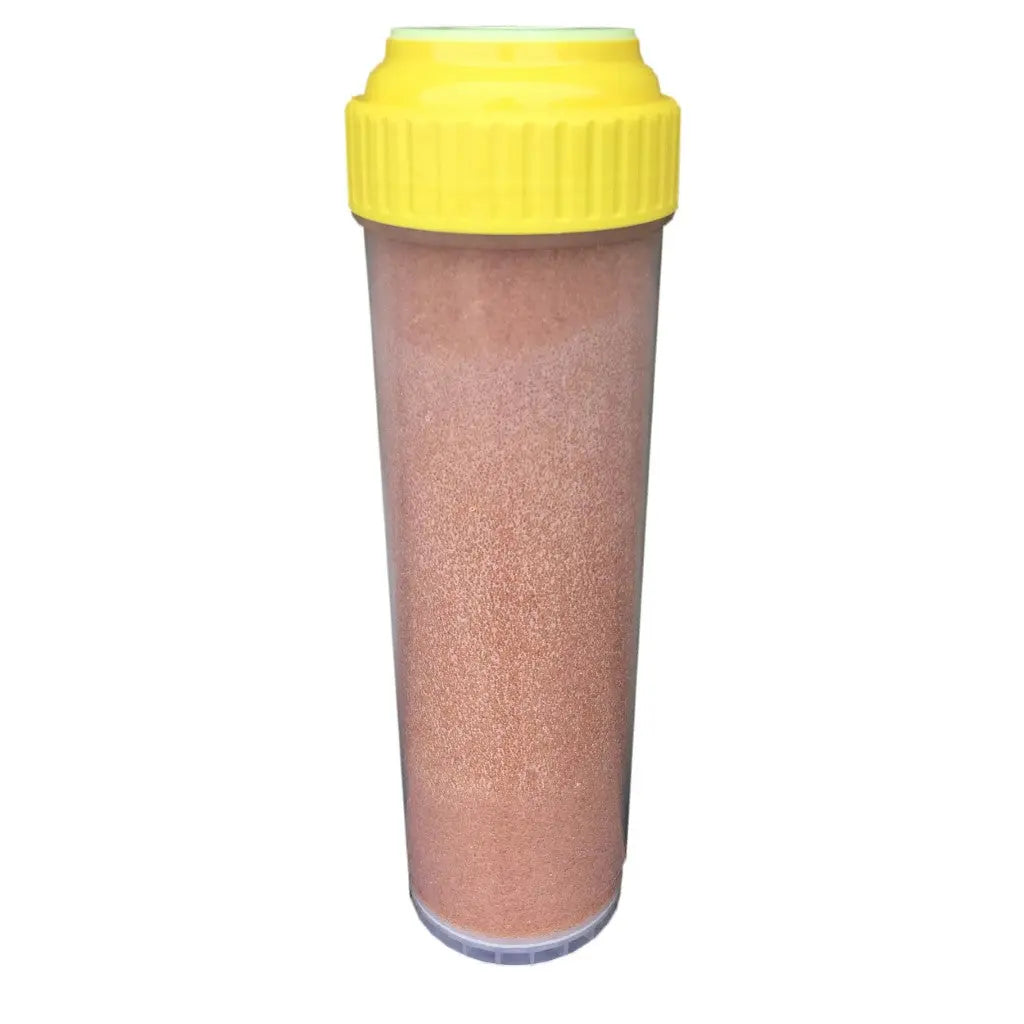

- One 10"x2.5" highest quality food grade mixed bed deionising resin.

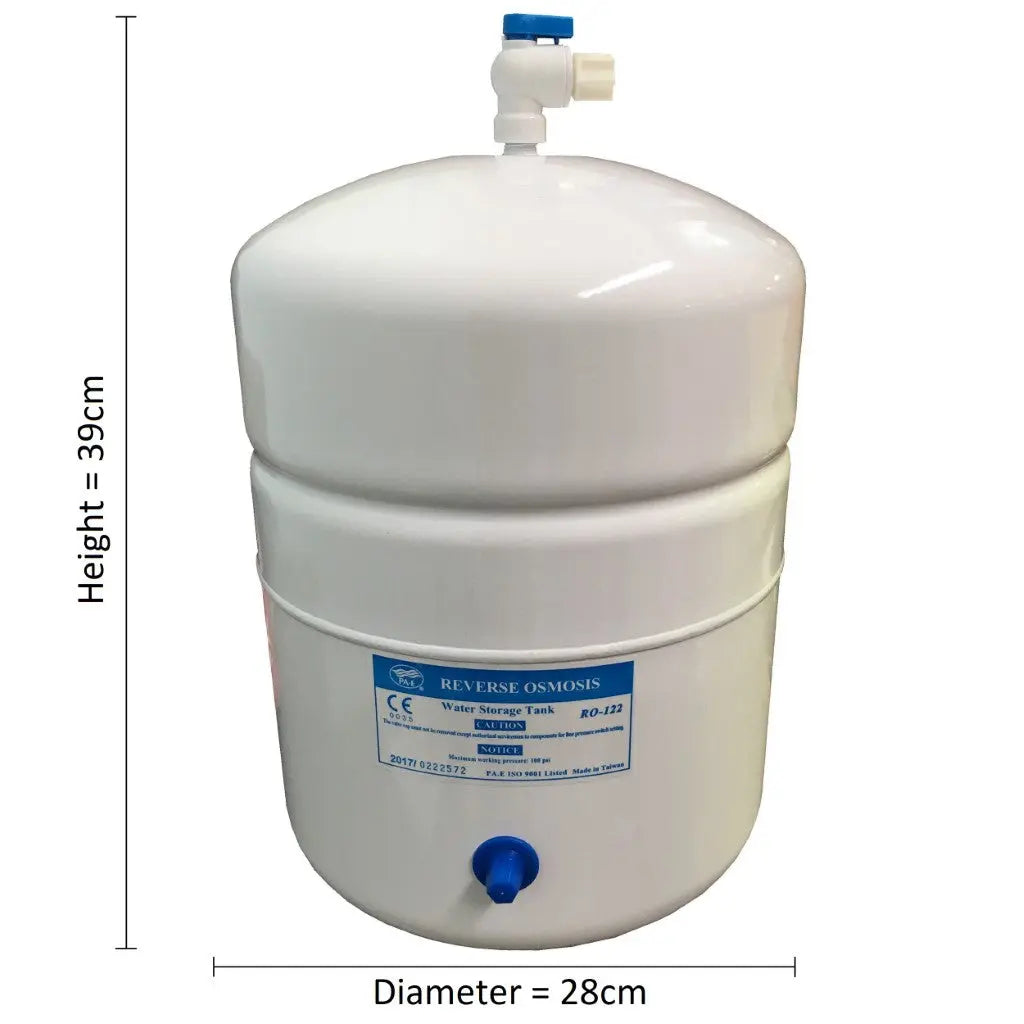

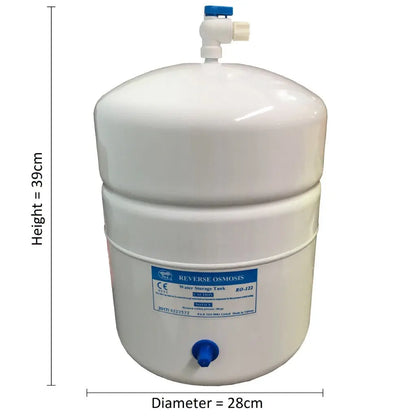

- 12 Litre - (39cm height, 26cm diameter)

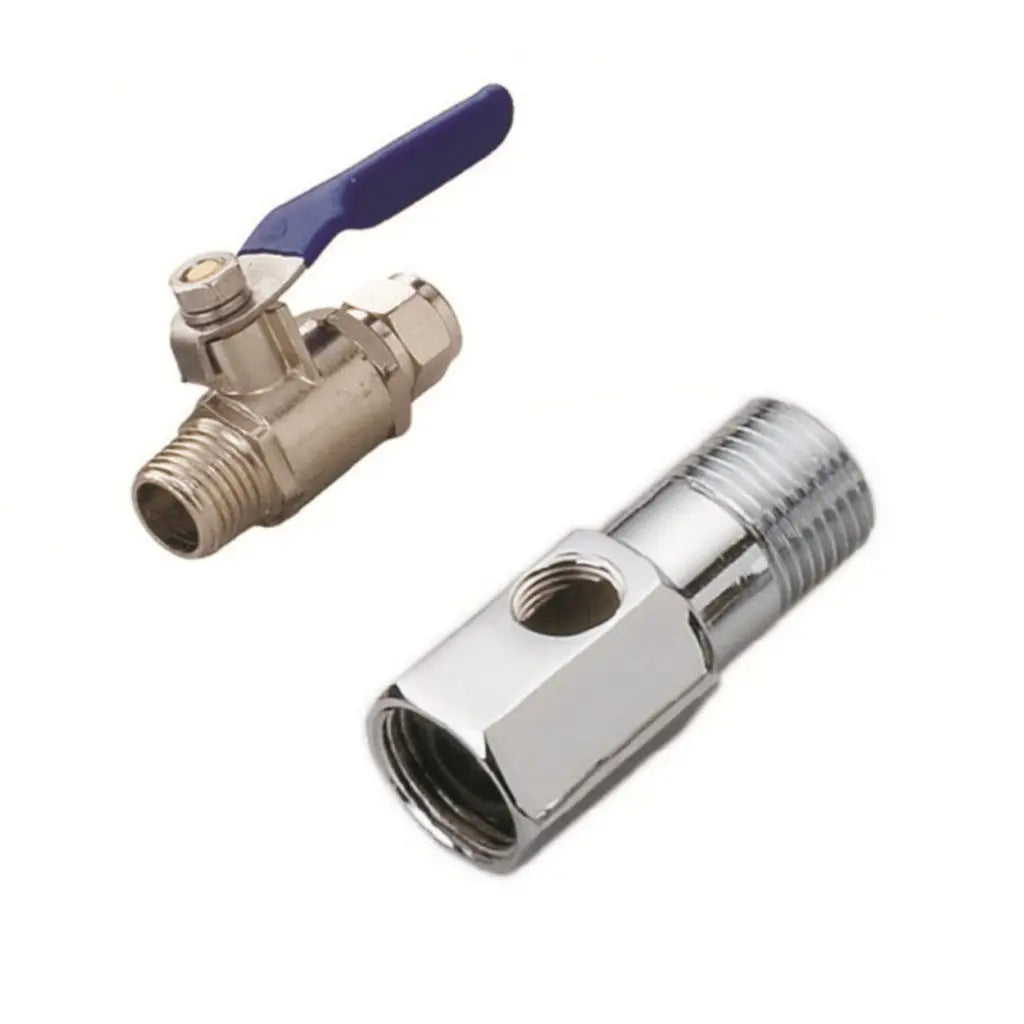

- Feed/inlet fittings included:
- 1x 1/2" insert - Shares normal cold water line to most mixer taps.
- 1x 3/4" insert - Shares normal cold water line to most dishwasher.

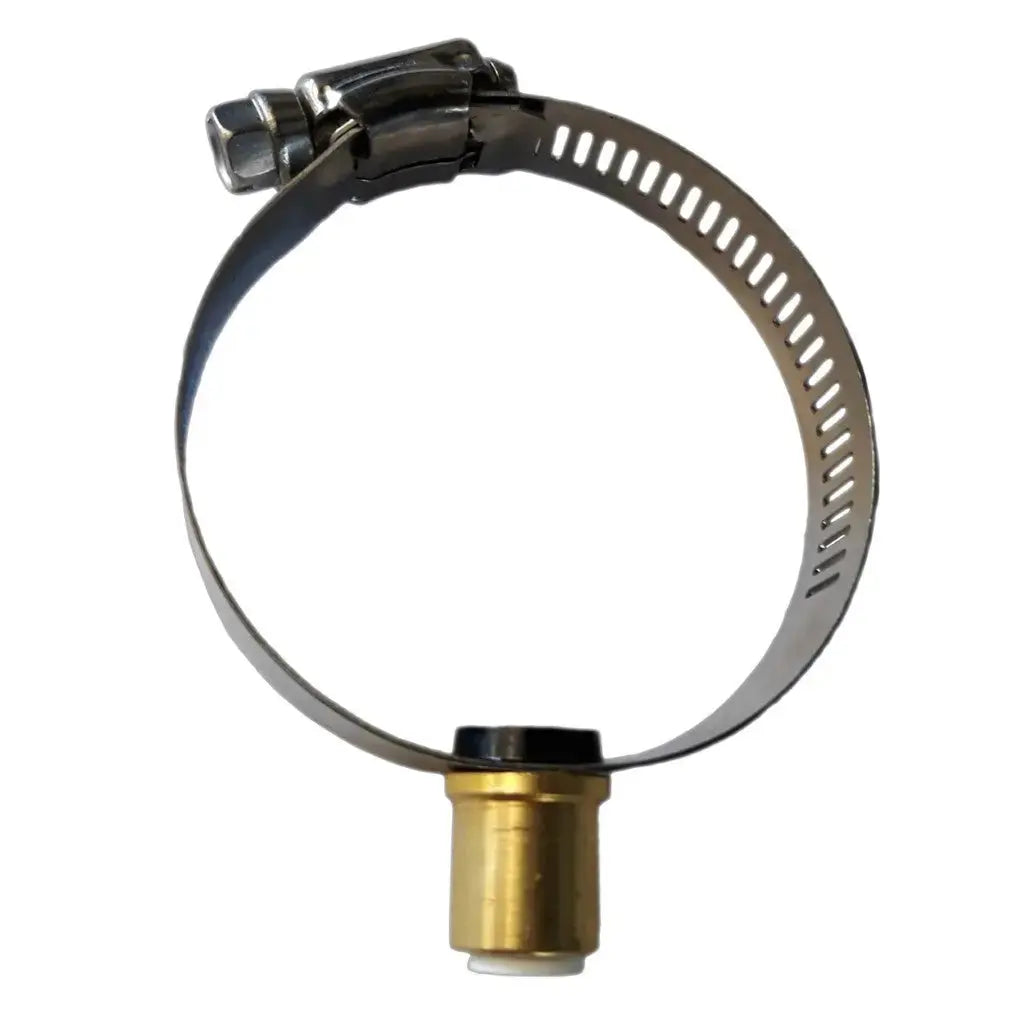

- 50mm adjustable drain clamp fittings:

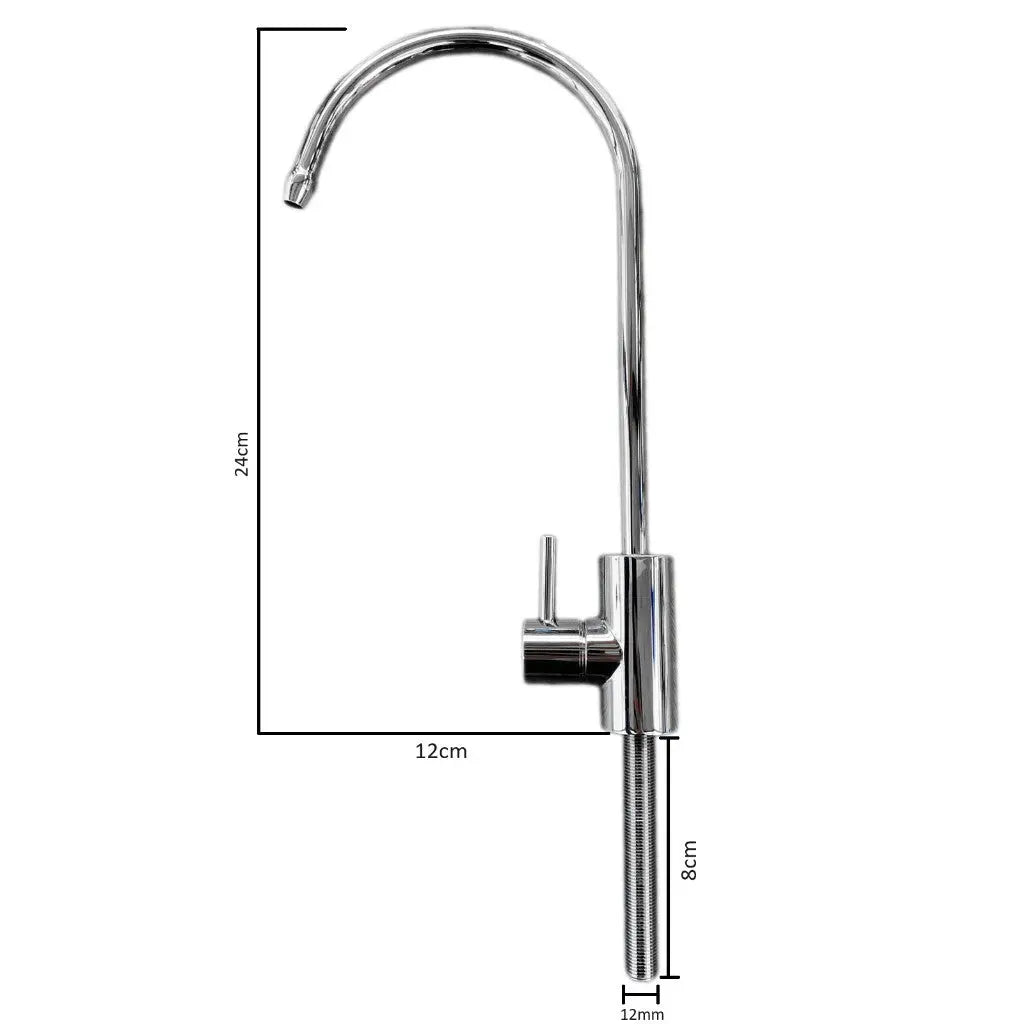

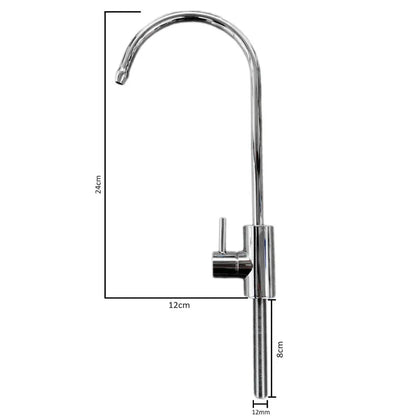

- An all chrome modern style faucet as pictured in the listing images.

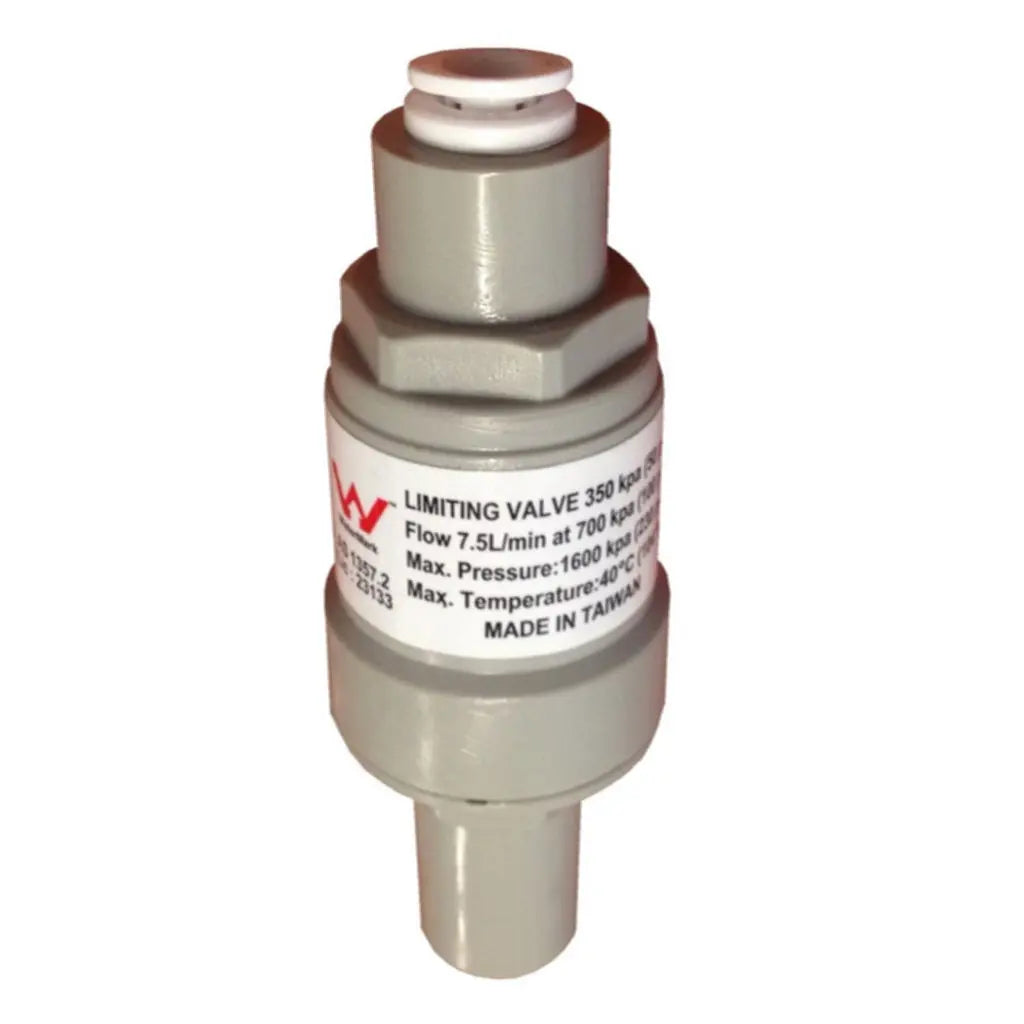

- An approved 350kpa pressure reducing valve as required by Australian standards.
- A housing spanner to open and close water filter housings.
- An installation kit including a roll of tubing, a roll of thread tape, spare fittings.
- An installation and maintenance guide.
This RO unit has a 36 month warranty which is subject to our warranty terms and conditions and is installed with a pressure reducing valve and leak shut off device

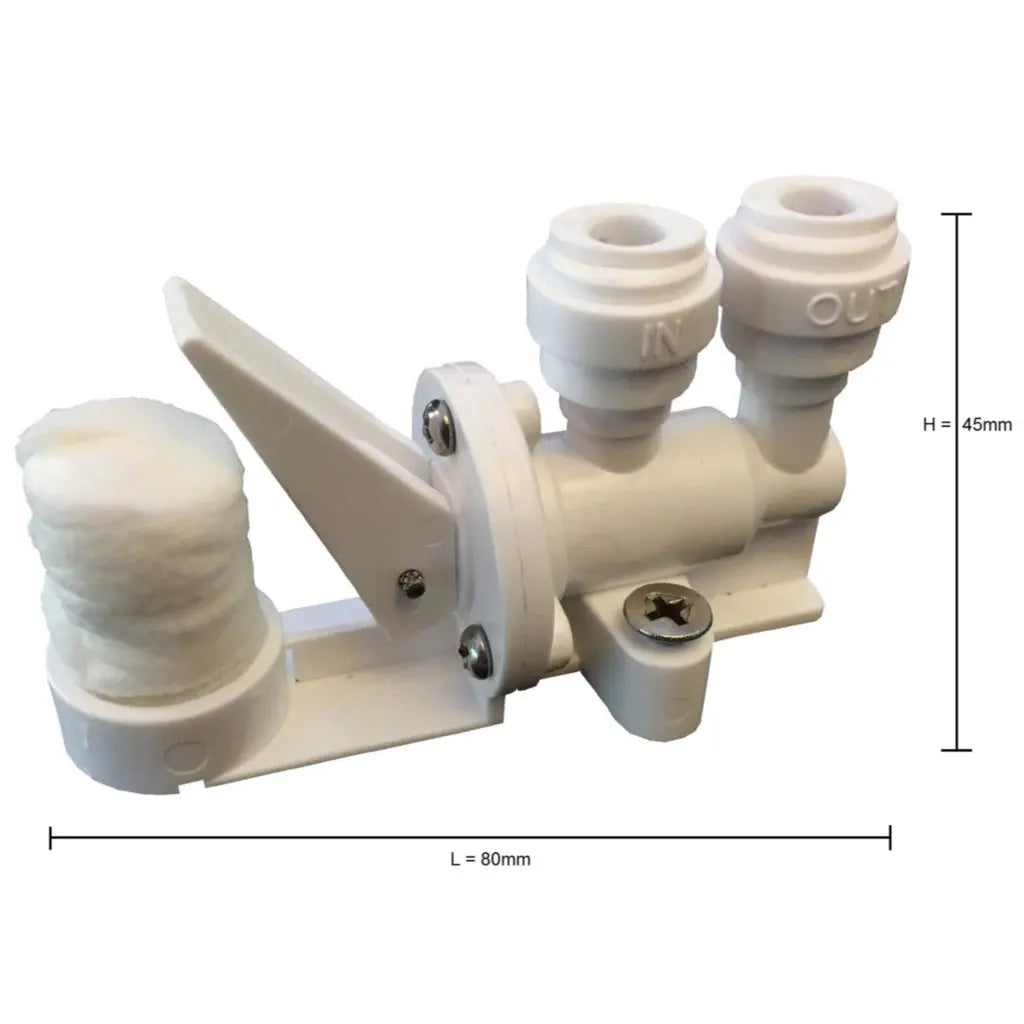

This listing includes a 350kpa pressure reducing and non-return valve as required by Australian Standards AS3497. We also recommend that a leak detector shut off device is installed with any water filter and / or reverse osmosis system which is under pressure which we sell separately in our eBay store as 121161074068
If you are not entirely satisfied with your purchase please contact us so that we can try to resolve your concerns
