Commercial Reverse Osmosis Water Filter Dental Laboratory Marine Fish

COMMERCIAL REVERSE OSMOSIS WATER FILTER DENTAL LABORATORY MARINE TANKS

Commercial Reverse Osmosis Water Filter - High Flow Reverse Osmosis Water Purifiers

SELECT SYSTEM FLOW RATE FROM DROP DOWN MENU

IMPORTANT: PLEASE READ THE DISCLAIMER AT THE BOTTOM OF THIS PAGE

THIS UNIT IS LEAK TESTED & PERFORMANCE RATED IN QLD AUSTRALIA

PRODUCT CODE: CRO-RO-LPD*
*LPD PER FLOW RATE SELECTED

WITH WHITE POWDER-COATED MILD STEEL FRAME

We have purposefully designed this system with minimal electronics and don’t use solenoids for longevity and less repairs and maintenance over the life of the unit. Replacement parts for this unit are easy to source, cost effective, not difficult to replace and give very few issues whereas in our experience these units built with PC boards and flashy electronics can become difficult to maintain in future. The picture in this listing is a stock item pictures and the unit you receive may look slightly different i.e. the membranes are normally mounted on the back and not top and some systems may have one pump instead of two pumps depending on the production flow rate required.

The reverse osmosis process produces the purest possible water and results in the total dissolved solids (TDS) count dropping by between 85% and 95% depending on environmental factors and system design. This purification process is commonly considered to be the most effective method of purification available to the public, and will consistently produce water with the lowest level of contaminant. Where water of a higher standard (99-100% contaminant reduction) is required, Mixed resin post filters may be fitted on request for an extra charge.

 This system will produce between +/- 500 and +/- 4,000 litres per 24 hours depending on the system selected and the purity level required [note that local water pressure and quality of the feed water can cause this estimate to vary]. This unit is tested on a town water supply, if you plan to use this unit on any other kind of supply (bore, creek, tank, etc) we strongly recommend performing basic water tests (TDS, Salinity, Hardness / Calcium and Iron) to determine whether the water is within the systems operating parameters. If you are unsure as to whether this unit suits your needs, feel free to send us a message with any details you have on your water, a TDS reading is a good place to start and we sell a basic TDS reader here

Reverse Osmosis will reduce all of contaminant found in the feed water. Different types of contaminant have different reduction rates, see the below table for the effective reduction rates of common contaminants. Note that reduction rates may vary for alternative compounds of the chemicals listed below and different environmental factors.

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.

SYSTEM INCLUDES:

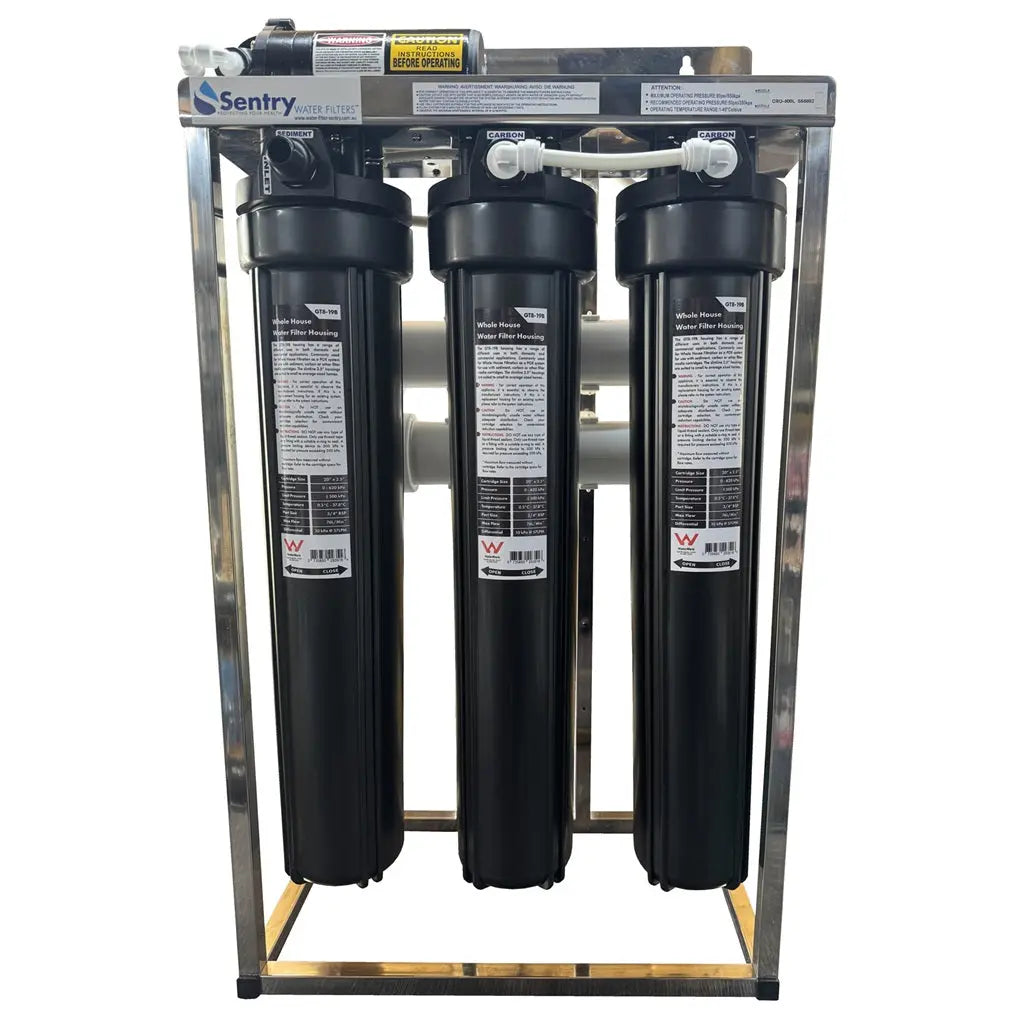

• White powder-coated mild steel frame (Upgrade to 316 stainless available)
• Three 20"x2.5" big blue pre-filter housings
• One 20x2.5 poly spun sediment filters (we may advise that you change this combination depending on your source water)
• Two 20x2.5 carbon block filter cartridges (we may advise that you change this combination depending on your source water)

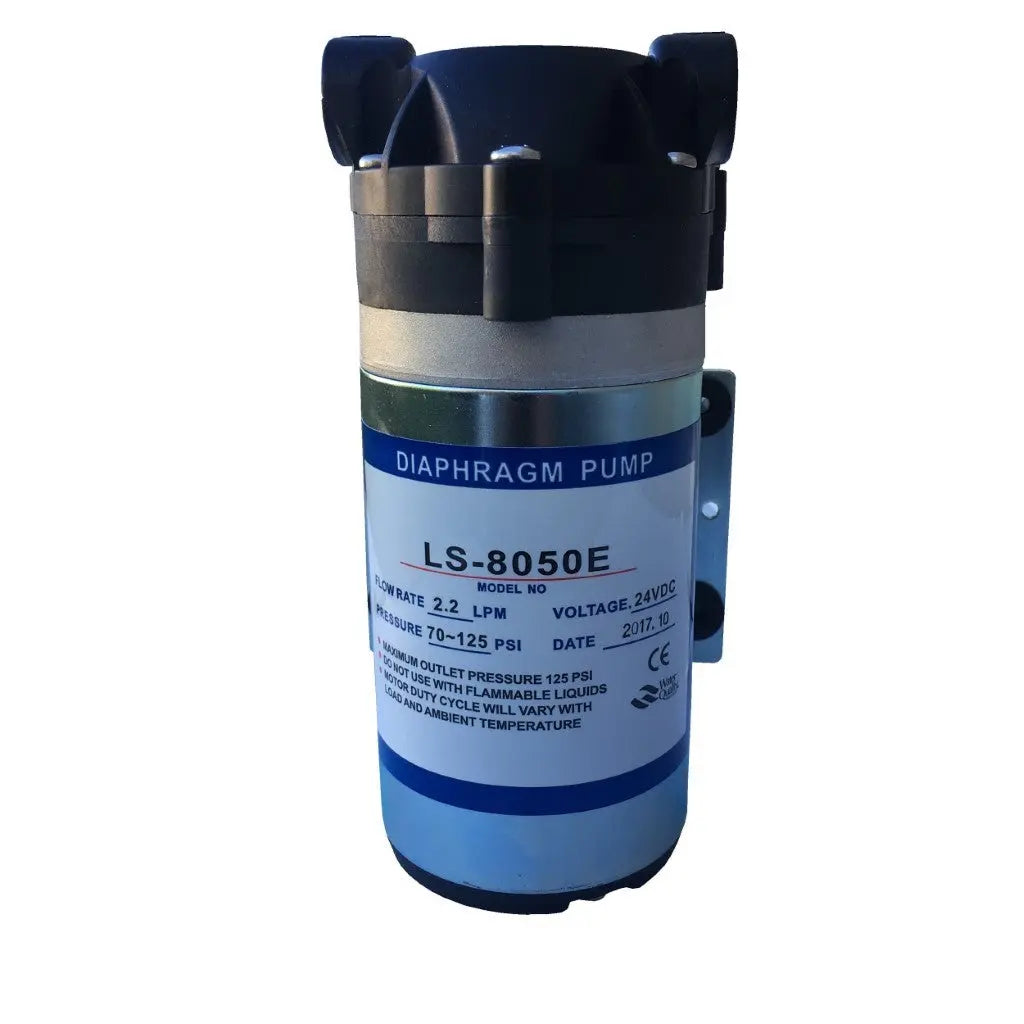

• Reliable diaphragm booster pump/s (including Australian approved transformer/s)*
• An array of high quality NSF certified reverse osmosis membrane elements

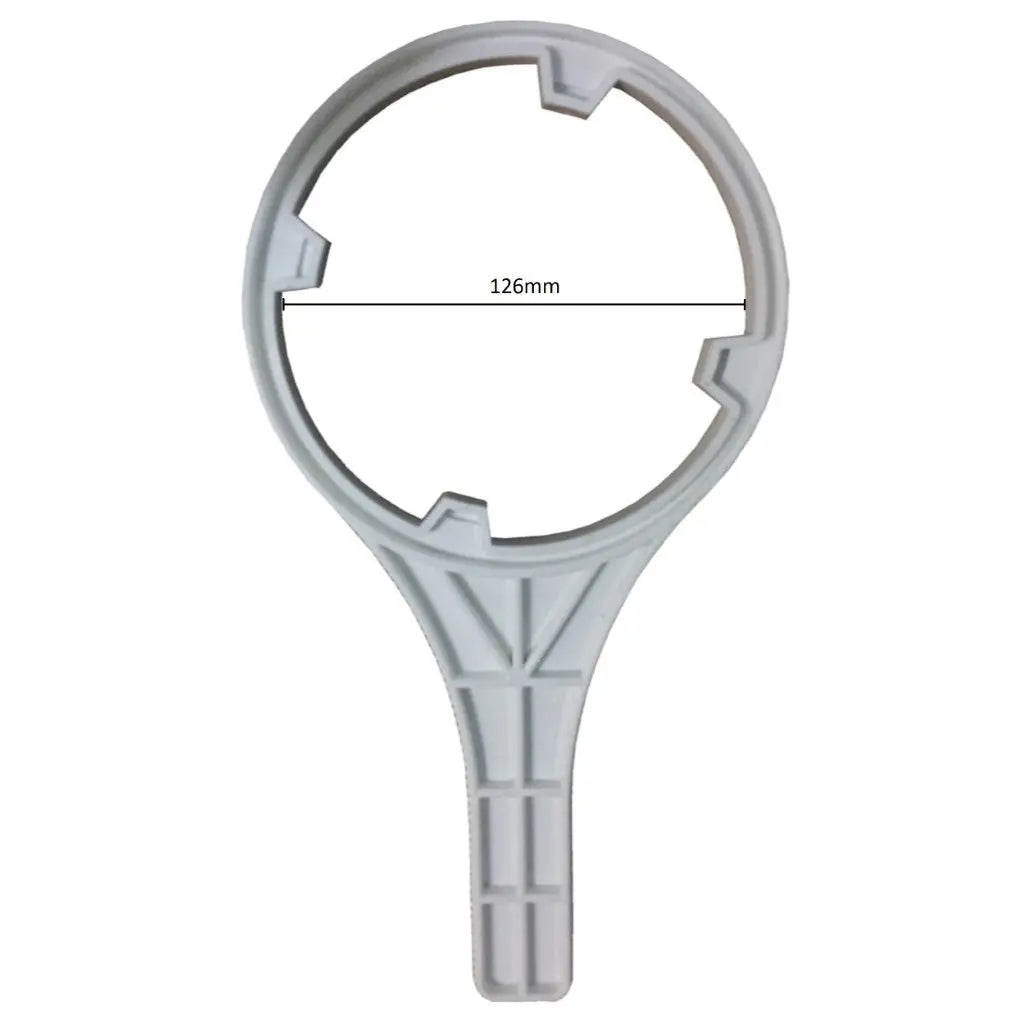

• Appropriate ring spanner to loosen and tighten the pre-filter housings
• Image 2 shows the dimensions of the system however the stand supplied is the one in the 1st [main[ listing image.

*Systems may be supplied with one or two pumps and pump flow rates may vary but will achieve at least the advertised production flow rate given minimal inlet feed water pressure. These units have low pressure switches to protect the pump from running dry and you'll need at least 20psi inlet water pressure for the low pressure switch to engage the pump [if you don't the low pressure switch will need to be bridged for the pomp to work].

The system is supplied as a complete unit, all you will need to do is connect the 1/2"BSP feed water inlet, product water and waste water outlets and power to operate the unit and where feed water is particularly bad extra pre-filtration may be required, please inquire to see if this may apply to you.

If you need delivery to a regional area a delivery surcharge may apply depending on the cost of freight so if you're not sure please contact us and ask whether we can include free delivery to you area and if not what would your delivery cost surcharge be before buying this item.

We supply these units with a 4-way shut off valve, a non return valve, a low pressure switch and a high pressure switch so that the unit can be setup to run automatically if you install a float valve [not included] in the tank you'll be using this unit to fill you may need to purchase a small buffer tank if you set this up and the waste is not shutting off in your environment. These small buffer tanks range from $49.50 for a 2 litre to $149.50 for a 12 litre tank and aren't always needed so it's best to test whether the waste shuts of in your setup and if not then add the buffer tank.

This RO unit carries a full 36 month warranty on all parts supplied in the original order, this is subject to our standard terms and conditions listed in our operating manual

If you are not entirely satisfied with your purchase please contact us so that we can try to resolve your concerns

We pre-assemble these units however before dispatching them we flush the membranes, leak test the unit, test the 4-way shut off valve and the low and high pressure switches and record all performance results. Thereafter we pack and dispatch the unit and this process takes 2 working days excluding the delivery of the unit which depends on where you are located. Paying extra for express post on this item will upgrade you from standard post to TNT Road Express if they service your region but if you are very reginal we recommended not paying extra for express post as you most likely won't receive your order any sooner.

Why Choose this Commercial Reverse Osmosis Water Filter?

This Commercial Reverse Osmosis Water Filter is a high-flow water purification system specifically designed for professional, high-demand environments like dental laboratories, commercial kitchens, or large marine/fish tanks. It is a robust, reliable unit that is leak tested and performance rated locally in QLD, Australia. It is engineered for longevity, featuring minimal electronics and avoiding solenoids to ensure cost-effective, straightforward maintenance throughout its life.

Compact Design and Powerful Performance

This industrial system is built to provide significant daily water output, producing between $\pm 500$ and $\pm 4,000$ litres per 24 hours, depending on the model selected. The RO process is highly effective, consistently achieving a Total Dissolved Solids (TDS) reduction of between $85\%$ and $95\%$. For requirements demanding $99-100\%$ contaminant reduction, mixed resin post-filters are available as an extra upgrade. The unit's powerful filtration is achieved through a comprehensive setup: three $20\text{in}\times 2.5\text{in}$ "Big Blue" pre-filter housings contain one $20\text{in}\times 2.5\text{in}$ poly spun sediment filter and two $20\text{in}\times 2.5\text{in}$ carbon block filter cartridges (combinations may be advised based on source water quality). The system offers exceptional reduction rates for common contaminants, including $100\%$ for Fluoride, Magnesium, Potassium, and Sulphate, and $99.9\%$ for Calcium (Hardness). It utilizes reliable diaphragm booster pump/s and an array of high-quality NSF certified reverse osmosis membrane elements, all housed in a white powder-coated mild steel frame (with a $316$ stainless steel upgrade available). A minimum inlet pressure of $20\text{psi}$ is required to engage the pump.

Seamless Integration and Safety/Compliance

The system is supplied as a complete unit, requiring only the connection of the $1/2\text{in}$ BSP feed water inlet, product water, waste water outlets, and power. It is equipped with essential controls like a 4-way shut off valve, non-return valve, low-pressure switch, and high-pressure switch to allow for automated operation (with a separate float valve). The unit is leak tested, switches and valves are checked, and membranes are flushed before dispatch. It is backed by a full 36-month warranty on all parts.

WATERMARK CERTIFICATION

WaterMark-certified housings are generally required where the system is being installed on a domestic town mains drinking water supply by a licensed plumber and where the installation is required to comply with the National Construction Code and applicable plumbing regulations.

For many commercial, industrial, agricultural and other non-regulated applications, WaterMark certification may not be required. However, it is the purchaser's responsibility to confirm the requirements for their intended installation.

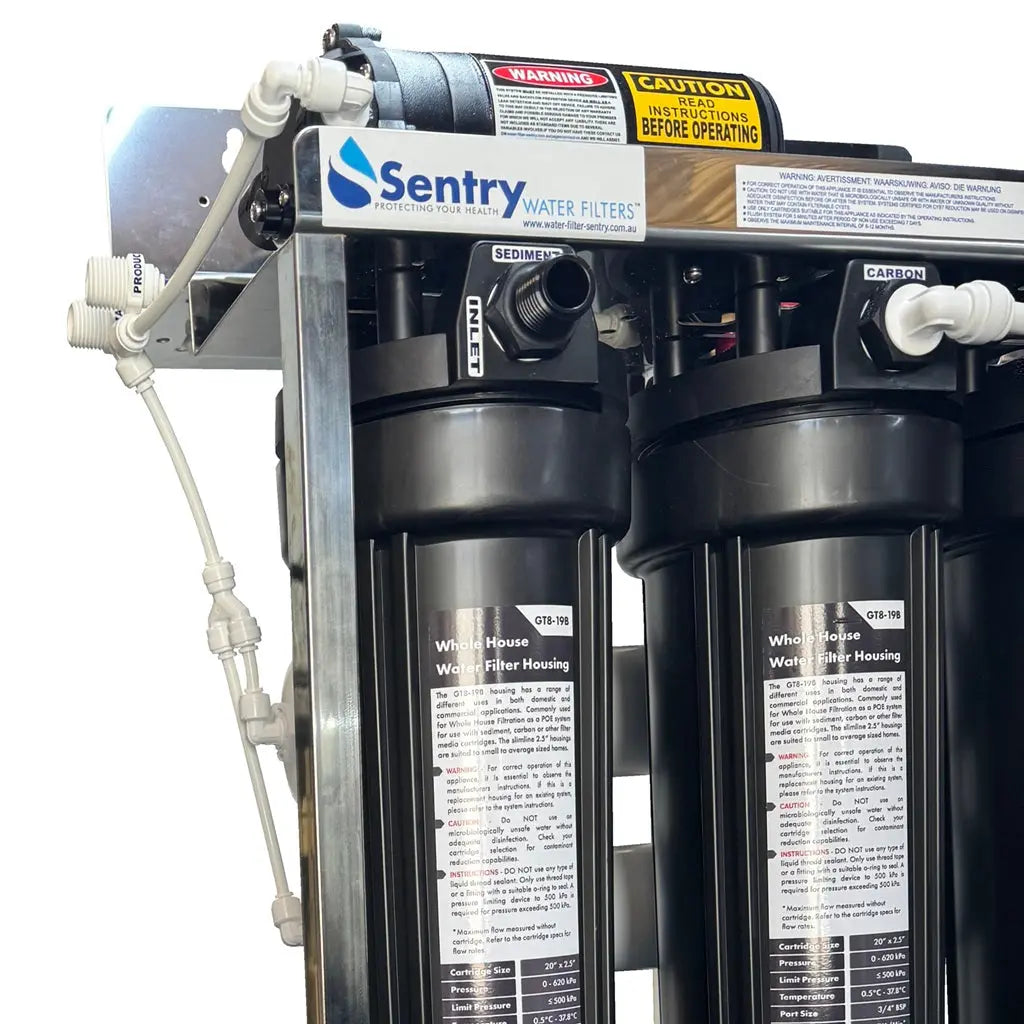

Image 3 - 4 shows housings that are Watermark-certified, which are required for domestic household systems connected to town mains water supply.

If you require WaterMark-certified housings, please advise us at the time of ordering. These are available for an additional $75 ($25 per housing).

It is important that you notify us before your order is dispatched. Retrofitting WaterMark-certified housings after dispatch requires replacement of the housings and additional freight, which can increase the total cost to several times the original $75 upgrade.

IMPORTANT DISCLAIMER

These industrial reverse osmosis systems are specialist water treatment systems and are not suitable for every application. Before purchasing, you must obtain our advice regarding the suitability of the system for your intended application and provide us with sufficient information about your feed water quality, feed pump pressure, feed pump flow rate, water temperature, existing pre-treatment, and any other information we reasonably request.

Where a current water analysis is unavailable, any recommendations we provide are based solely on the information supplied by you. As such, we cannot guarantee the suitability or performance of the system if the information provided is incomplete or inaccurate.

By purchasing this system, you acknowledge that you are responsible for ensuring the feed water quality, feed pressure, feed flow, electrical supply, plumbing installation and operation of the system comply with our recommendations and specifications.

If you choose to purchase one of these systems without first obtaining our advice, or without providing the requested information, and later discover that the system is unsuitable for your application, the system cannot be returned once it has been installed, connected to water or used.

Furthermore, no warranty will apply to performance issues, reduced production, membrane fouling, membrane scaling, premature pump wear, component failure or any other issues resulting from:

• Unsuitable feed water quality.


• Insufficient or excessive feed pressure or flow.


• Inadequate or incorrect pre-treatment.


• Incorrect installation.


• Operation outside our recommended specifications.


• Failure to follow our installation, operating or maintenance instructions.


• Alteration of pressure settings, waste-to-pure water ratio or other operating parameters without our written approval.


• Modification of the plumbing, electrical wiring or any component of the system.


• Failure to implement any pre-treatment, installation or operating recommendations made by us prior to or after purchase.

Reverse osmosis membranes, pre-filters, pump seals and other consumable components are wear items. Their service life depends entirely on feed water quality, operating conditions, maintenance and the way the system is operated. As these factors are outside our control, no guarantee can be given regarding the service life of these components.

The published production capacity of this system is a nominal rating only and is based on favourable operating conditions, including suitable feed water quality, adequate inlet pressure, appropriate feed flow, correct operating temperature and the recommended waste-to-pure water ratio. Actual production may vary significantly depending on your installation, water quality and operating conditions.

Any costs associated with the removal, reinstallation, commissioning, freight, travel, accommodation, labour, loss of production, downtime, consequential losses or other expenses relating to warranty claims or technical support are the responsibility of the purchaser unless otherwise agreed by us in writing. The warranty is limited solely to the repair or replacement of defective components, at our discretion, in accordance with our warranty terms and conditions.

If you choose to purchase a system without first obtaining our recommendations, any technical assistance required to diagnose application, design, installation or operating issues may be subject to our standard consulting and technical support charges.

We reserve the right to decline the sale of any system where insufficient information has been provided for us to determine whether it is suitable for the intended application.

We strongly recommend contacting us before purchasing so we can confirm the system is suitable for your application, configure it to suit your water quality and operating conditions, and maximise its long-term performance and reliability.
